P0806-00-Clutch Position Sensor 1 Circuit Performance: Notes

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .

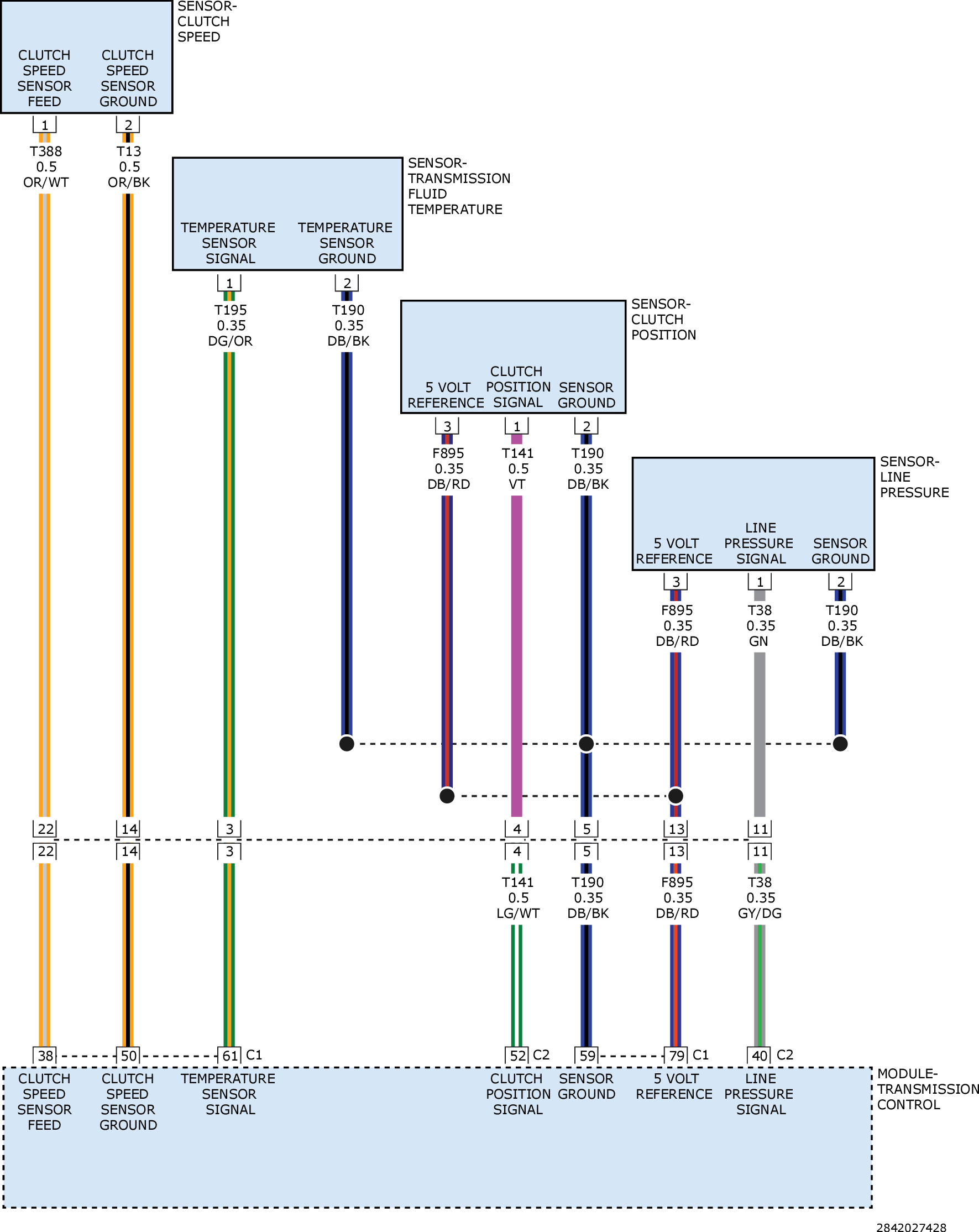

Fig 1: Clutch Position Sensor 1 Circuit Diagram
GC0168590Courtesy of CHRYSLER GROUP, LLC
