Sending Unit And Sensor, Fuel Level: Installation: Installation

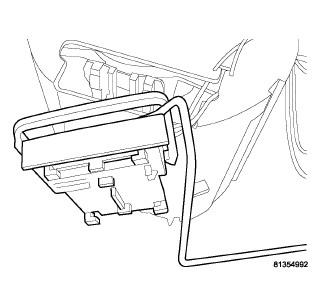

Fig 1: View Of Level Sender Card (Driver Side)

Courtesy of CHRYSLER GROUP, LLC

1. Reconnect the electrical wiring from module to the fuel level sending card.
2. Install the level sending card into the guides in the fuel pump module.
3. Install the fuel pump module. Refer to MODULE, FUEL PUMP, REMOVAL .
4. Install the fuel tank. Refer to TANK, FUEL, REMOVAL  .
5. Connect the negative battery cable.
