DTC Troubleshooting: B212D-13-Ignition-Run-Only-Input-Circuit: Notes

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .

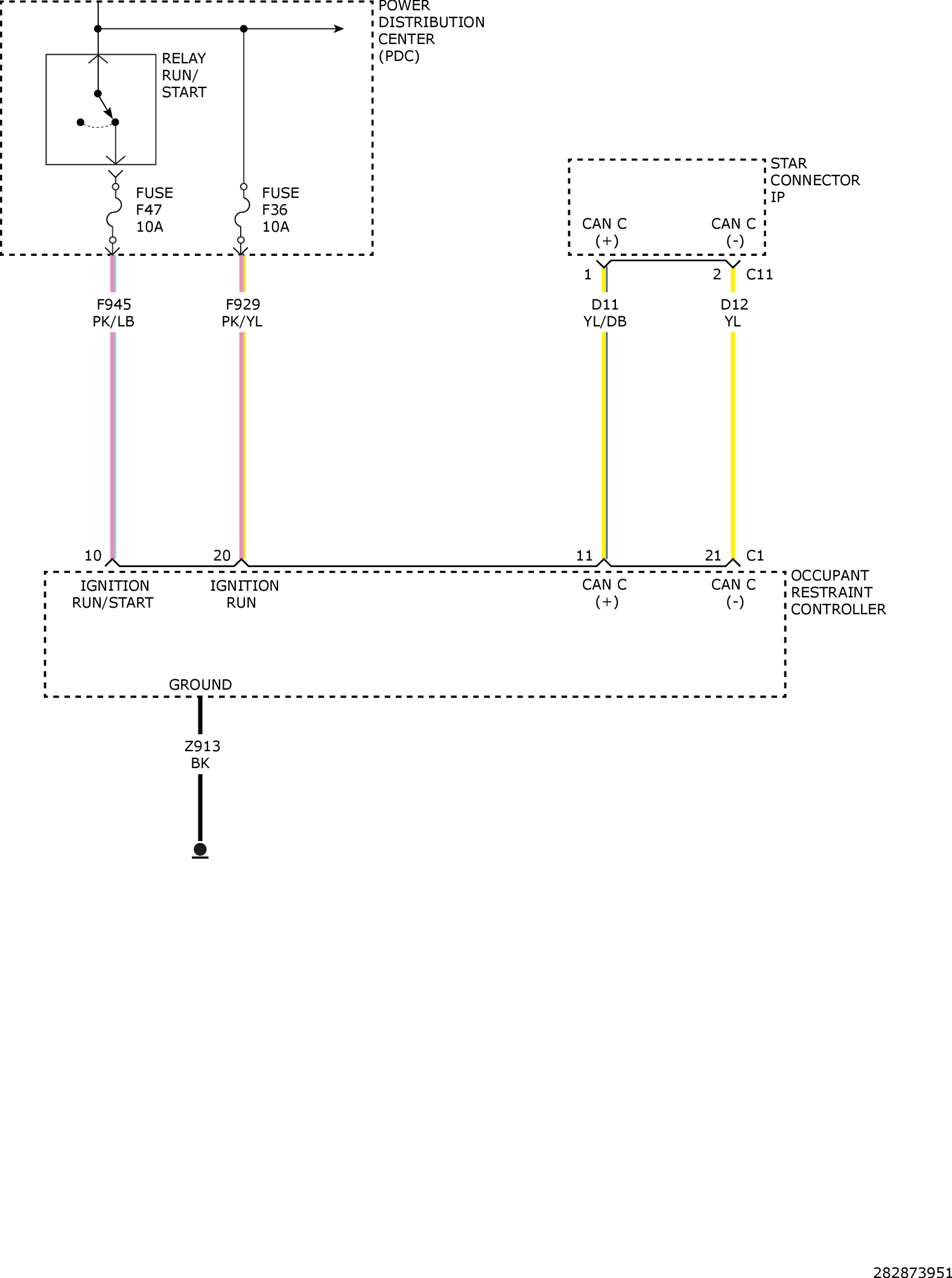

Fig 1: Occupant Restraint Controller Module Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC
