P0444-EVAP Purge Control Circuit Open: Notes

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .

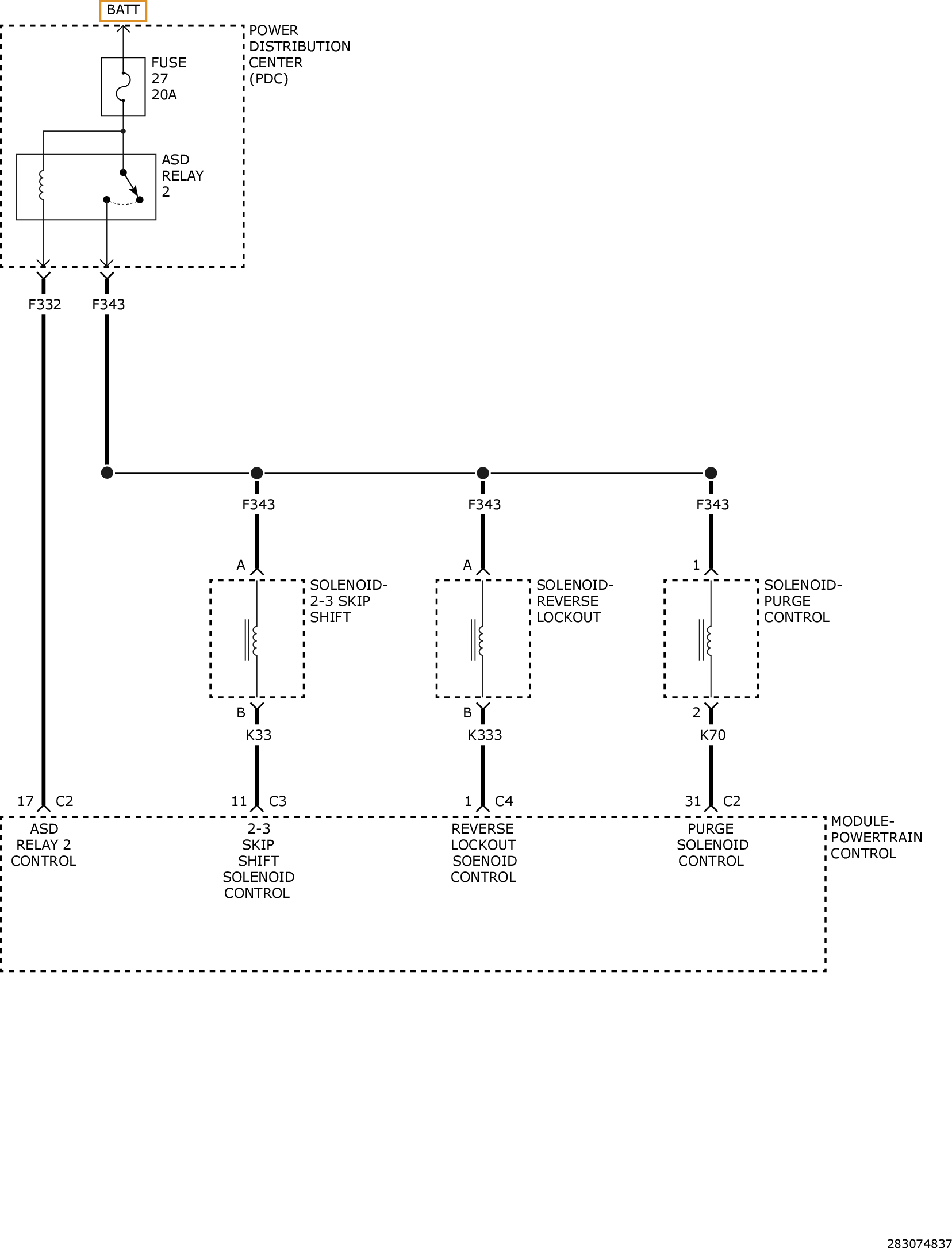

Fig 1: Evap Purge System Circuit Diagram

GC0157030

Courtesy of CHRYSLER GROUP, LLC
