P0627-Fuel Pump Control Circuit/Open: Notes

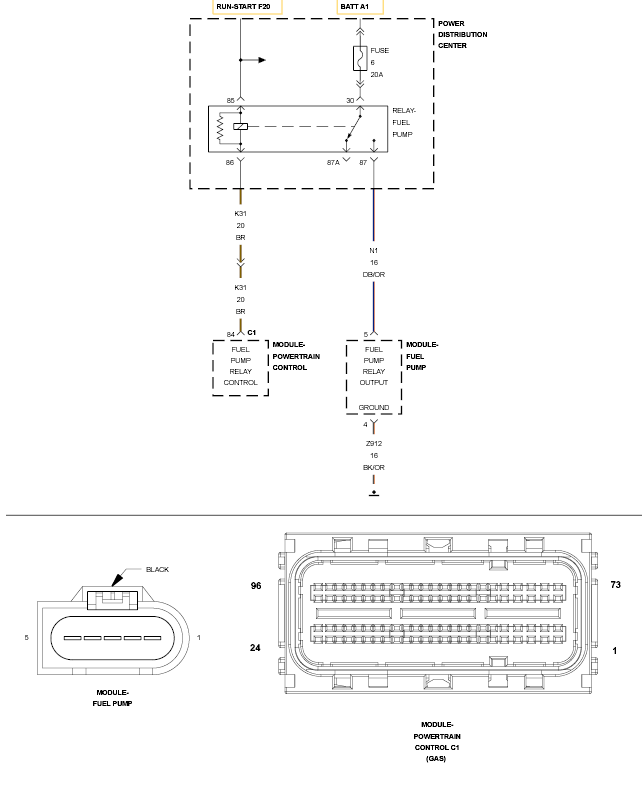

Fig 1: Fuel Pump Control Circuit Schematic

GC0141885

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article.
