Stabilizer Bar, Front: Installation: Installation

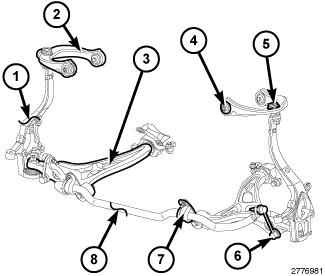

Fig 1: Identifying Suspension Components With Rubber/Urethane Bushings

Courtesy of CHRYSLER GROUP, LLC

1. Position the stabilizer bar (8) to the vehicle.
2. Install the stabilizer bushing clamps and tighten the two bolts on each side to 122 N.m (90 ft. lbs.).

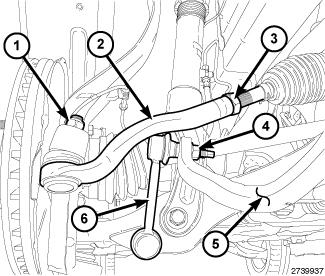

   Fig 2: Stabilizer Link Upper Nut & Stabilizer Link

   Courtesy of CHRYSLER GROUP, LLC
3. Position the stabilizer link (6) to the stabilizer bar (5), install the nut (4) and tighten to 122 N.m (90 ft. lbs.).
4. Install the front skid plate. Refer to PLATE, SKID, FRONT, INSTALLATION or PLATE, SKID, FRONT SUSPENSION, INSTALLATION .
5. Remove the supports and lower the vehicle.
