Third Row Bench Single Buckle

WARNING:

To avoid serious or fatal injury during and following any seat belt or child restraint anchor service, carefully inspect all seat belts, buckles, mounting hardware, retractors, tether straps, and anchors for proper installation, operation, or damage. Replace any belt that is cut, frayed, or torn. Straighten any belt that is twisted. Tighten any loose fasteners. Replace any belt that has a damaged or ineffective buckle or retractor. Replace any belt that has a bent or damaged latch plate or anchor plate. Replace any child restraint anchor or the unit to which the anchor is integral that has been bent or damaged. Never attempt to repair a seat belt or child restraint component. Always replace damaged or ineffective seat belt and child restraint components with the correct, new and unused replacement parts listed in the Chrysler Mopar® Parts Catalog.

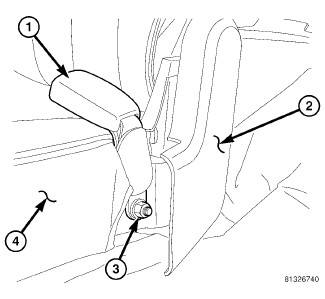

Fig 1: First Row Buckle - Inboard - Retaining Nut

Courtesy of CHRYSLER GROUP, LLC

Pull the forward edge of the trim cover (2) away from the side of the seat cushion (4) far enough to access the mounting stud on the seat cushion frame for the single third row seat belt buckle (1) lower anchor.
Position the buckle lower anchor onto the stud.
Install and tighten the nut (3) that secures the buckle lower anchor to the stud. Tighten the nut to 39 N.m (29 ft. lbs.).

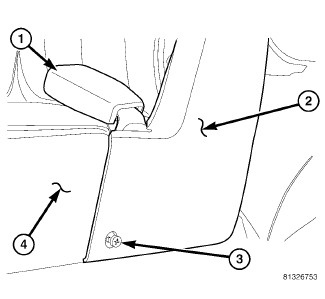

Fig 2: First Row Buckle - Inboard - Cover Retaining Screw
Courtesy of CHRYSLER GROUP, LLC
Position the trim cover (2) over the single third row seat belt buckle (1) lower anchor on the side of the seat cushion (4).
Install and tighten the screw (3) that secures the trim cover to the seat cushion. Tighten the screw securely.
Restore to the seating position the seat section which did not have the buckle replaced.
