B197A-Power Liftgate Latch Release - Sector Switch Performance: Notes

WARNING: This page is about a different car, the 2011 Dodge Grand Caravan and 2011 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.

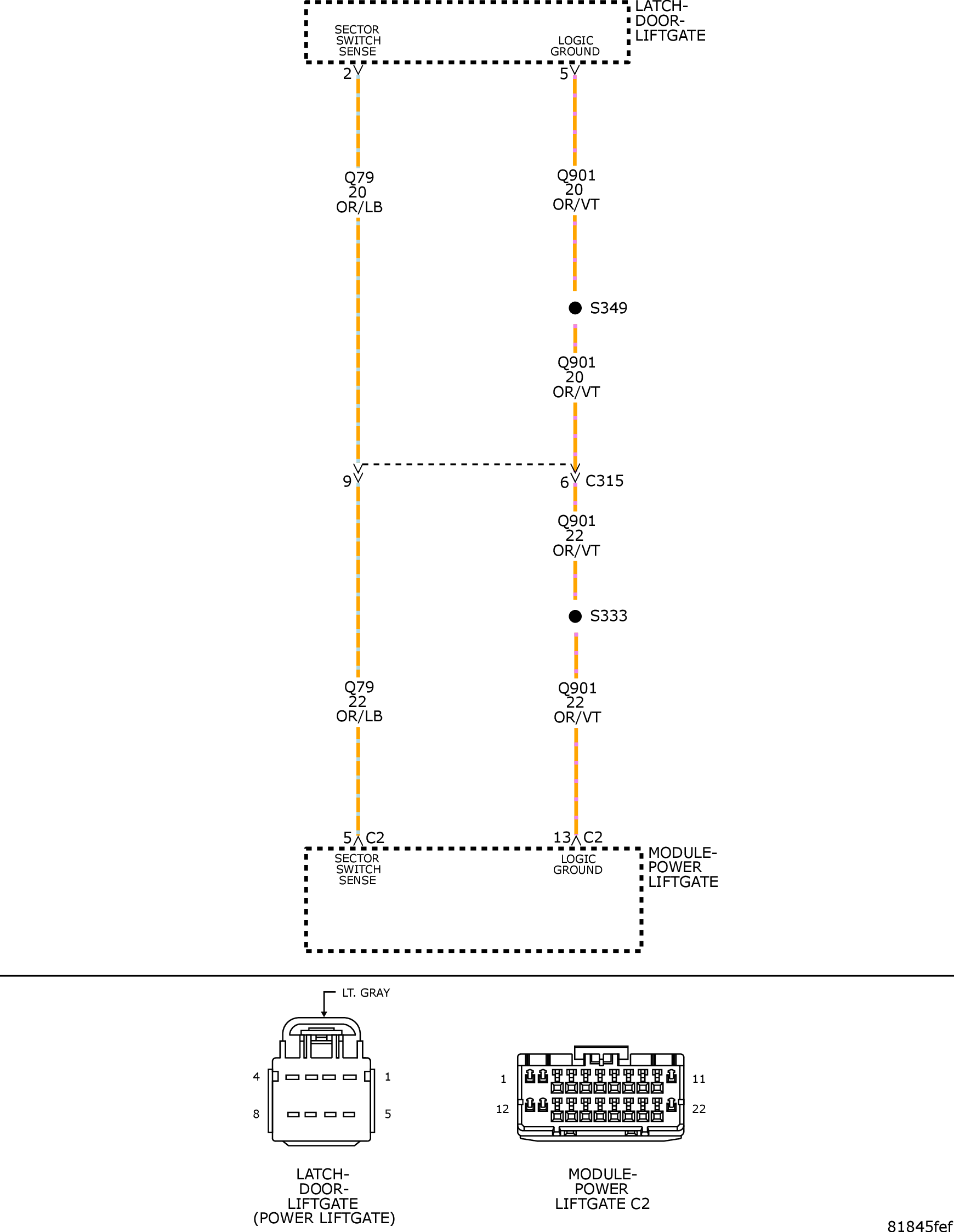

Fig 1: Power Liftgate Sector Switch Circuit Schematic

Courtesy of CHRYSLER LLC

For a complete wiring diagram refer to appropriate SYSTEM WIRING DIAGRAMS article
