Diagnostic Test

WARNING: This page is about a different car, the 2011 Dodge Grand Caravan and 2011 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.

DTC PRESENT
1. With the scan tool, record and erase DTCs.
2. Turn the ignition off, wait 10 seconds, then turn the ignition on.
3. Operate the Power Liftgate several times from stop to stop if possible.
4. With the scan tool, read ACTIVE DTCs.
  Does the scan tool display B196C-POWER LIFTGATE CLOSE DIRECTION EXCESSIVE POSITION SENSOR COUNTS?

  Yes
  - Go To 2.
  No
  - Using the wiring diagram/schematic as a guide, inspect the wiring and connectors for an intermittent condition. Operate the liftgate several times and check for any binding conditions.
  - Perform the BODY VERIFICATION TEST. Refer to TOTALLY INTEGRATED POWER MODULE (TIPM) - BODY VERIFICATION TEST .
BINDING LIFTGATE
1. Examine the liftgate for proper alignment, worn or binding hinges, weak liftgate prop assembly, loose/hard weatherstrip seal, for wear or anything that would cause an obstruction to proper operation.
2. If necessary manually operate the power liftgate on a known good vehicle and notice the effort needed to open and close for comparison.
  Were there any mechanical problems found?

  Yes
  - Refer to the appropriate Service information for the related symptom(s).
  - Perform the BODY VERIFICATION TEST. Refer to TOTALLY INTEGRATED POWER MODULE (TIPM) - BODY VERIFICATION TEST .
  No
  - Go To 3.
POWER LIFTGATE LATCH
1. With the scan tool, monitor the SECONDARY RATCHET SWITCH CLOSED.
2. Using a screwdriver, click the latch to the closed position while observing the scan tool.
3. Unlatch the latch by pressing the handle switch and observe the scan tool for a change of state.
4. Repeat this step several times while moving the liftgate in different positions and wiggling the harness to check for an intermittent open or shorted circuit.
  Did the scan tool show the switch state changing correctly every time?

  No
  - Go To 4.
  Yes
  - Go To 5.
  - Perform the BODY VERIFICATION TEST. Refer to TOTALLY INTEGRATED POWER MODULE (TIPM) - BODY VERIFICATION TEST .
CHECK THE (Q76) LATCH SECONDARY POSITION SENSE CIRCUIT FOR A SHORT TO GROUND

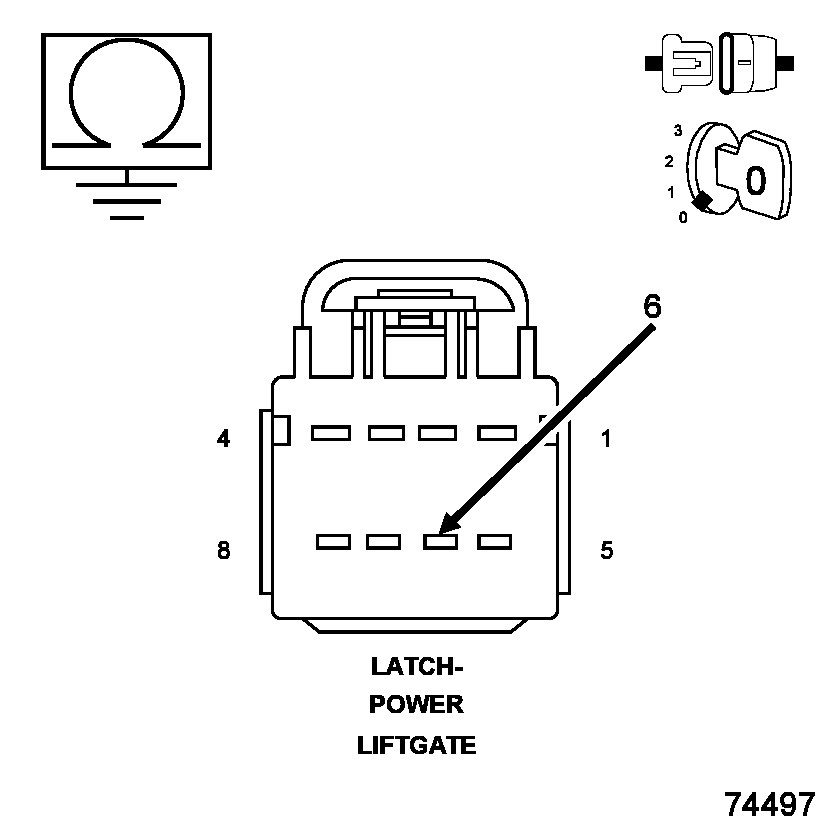

Fig 1: Checking Latch Secondary Position Sense Circuit For A Short To Ground
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the Power Liftgate Latch harness connector.
3. Measure the resistance between ground and the (Q76) Latch Secondary Position Sense circuit.
4. Wiggle the harness while observing the Ohmmeter.
  Is the resistance below 1, 000 Ohms?

  No
  - Replace the Power Liftgate Latch assembly in accordance with Service Information.
  - Perform the BODY VERIFICATION TEST. Refer to TOTALLY INTEGRATED POWER MODULE (TIPM) - BODY VERIFICATION TEST .
  Yes
  - Repair the (Q76) Latch Secondary Position Sense circuit for a short to ground.
  - Perform the BODY VERIFICATION TEST. Refer to TOTALLY INTEGRATED POWER MODULE (TIPM) - BODY VERIFICATION TEST .
POWER LIFTGATE MODULE - POSITION SENSE OPEN
1. Operate the liftgate from the full closed position and put an obstacle in its path to make it reverse.
  Did the liftgate reverse back to the closed position?

  Yes
  - Replace the Power Liftgate Drive Unit in accordance with the service information.
  - Perform the BODY VERIFICATION TEST. Refer to TOTALLY INTEGRATED POWER MODULE (TIPM) - BODY VERIFICATION TEST .
  No
  - Replace the Power Liftgate Module in accordance with the Service Information.
  - Perform the BODY VERIFICATION TEST. Refer to TOTALLY INTEGRATED POWER MODULE (TIPM) - BODY VERIFICATION TEST .
