B194F-Power Liftgate Temperature Sensor Circuit Performance: Notes

WARNING: This page is about a different car, the 2011 Dodge Grand Caravan and 2011 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.

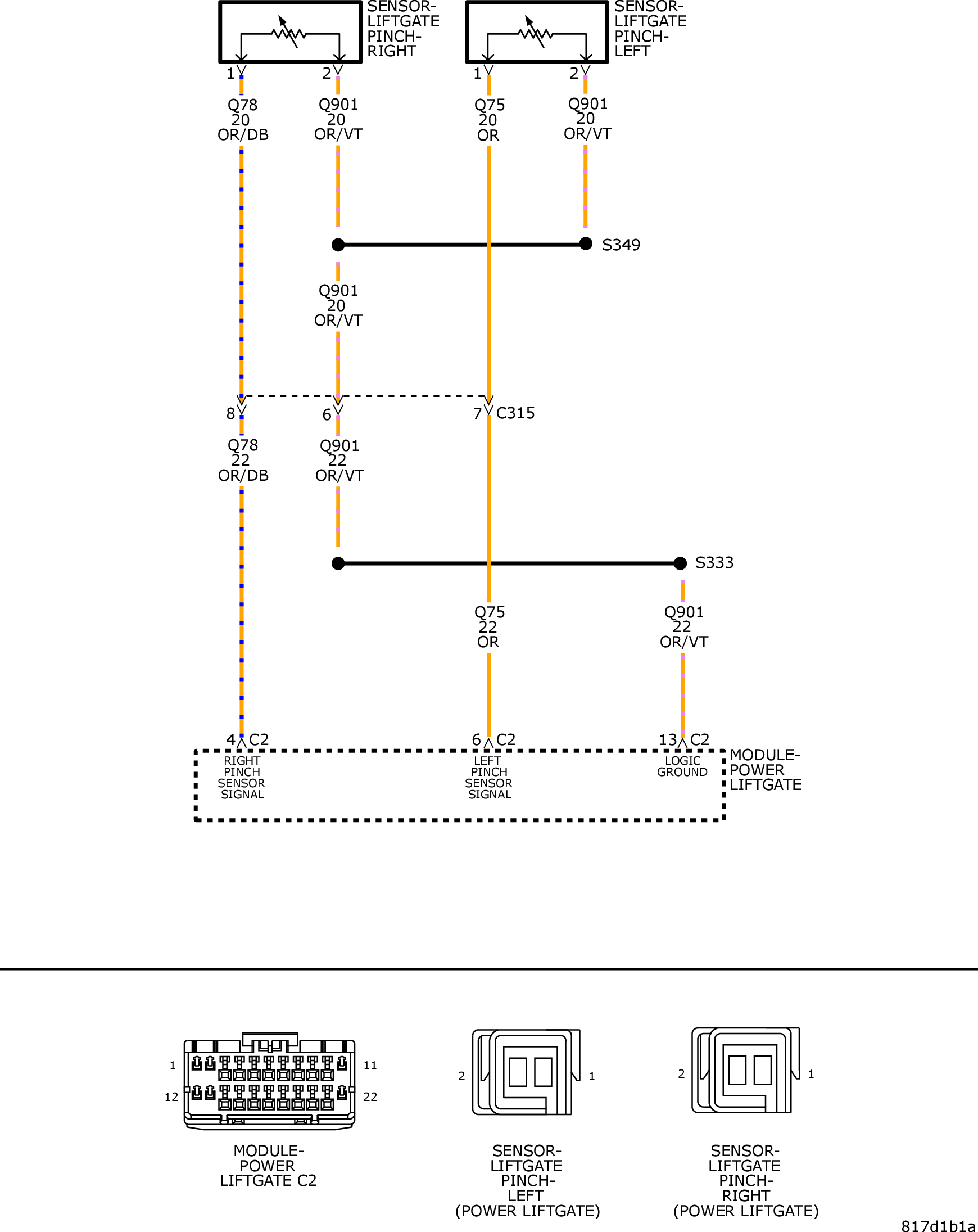

Fig 1: Power Liftgate Pinch Sensors Wiring Diagram
GC0127190Courtesy of CHRYSLER LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
