Module, Fuel Pump: Description: Description

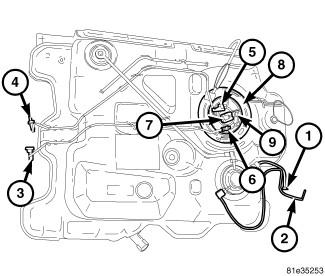

Fig 1: Identifying Fuel Pump Module

GC0125549

Courtesy of CHRYSLER GROUP, LLC

The 2.8L diesel fuel pump module (9) is located on the top of fuel tank.
