B1E41-3RD Row Seat Left Backrest Control Circuit Performance: Notes

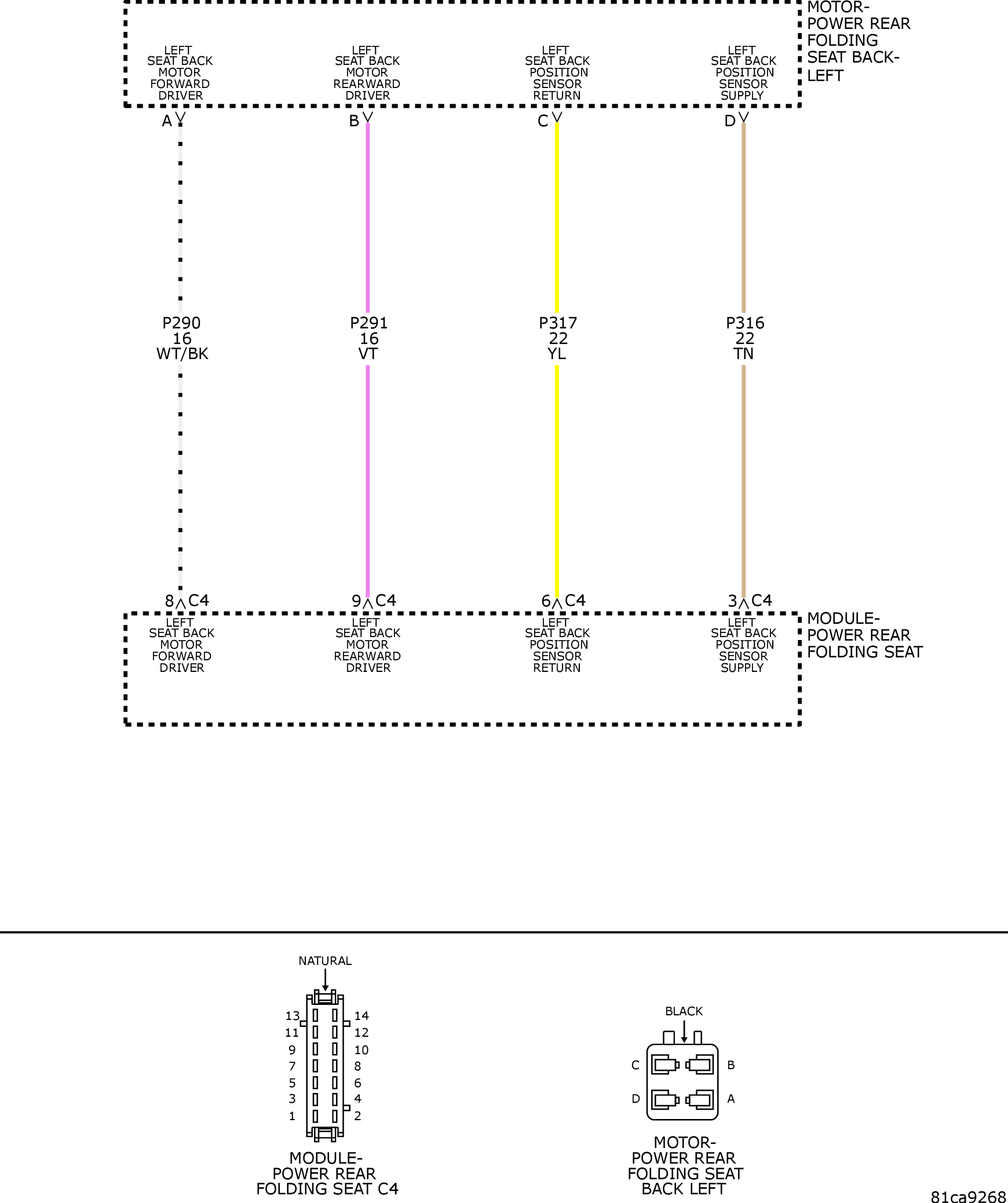

Fig 1: 3rd Row Seat Left Backrest Control Circuit Wiring Diagram

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
