B1E2F-3RD Row Seat Left Backrest Switch Circuit High: Notes

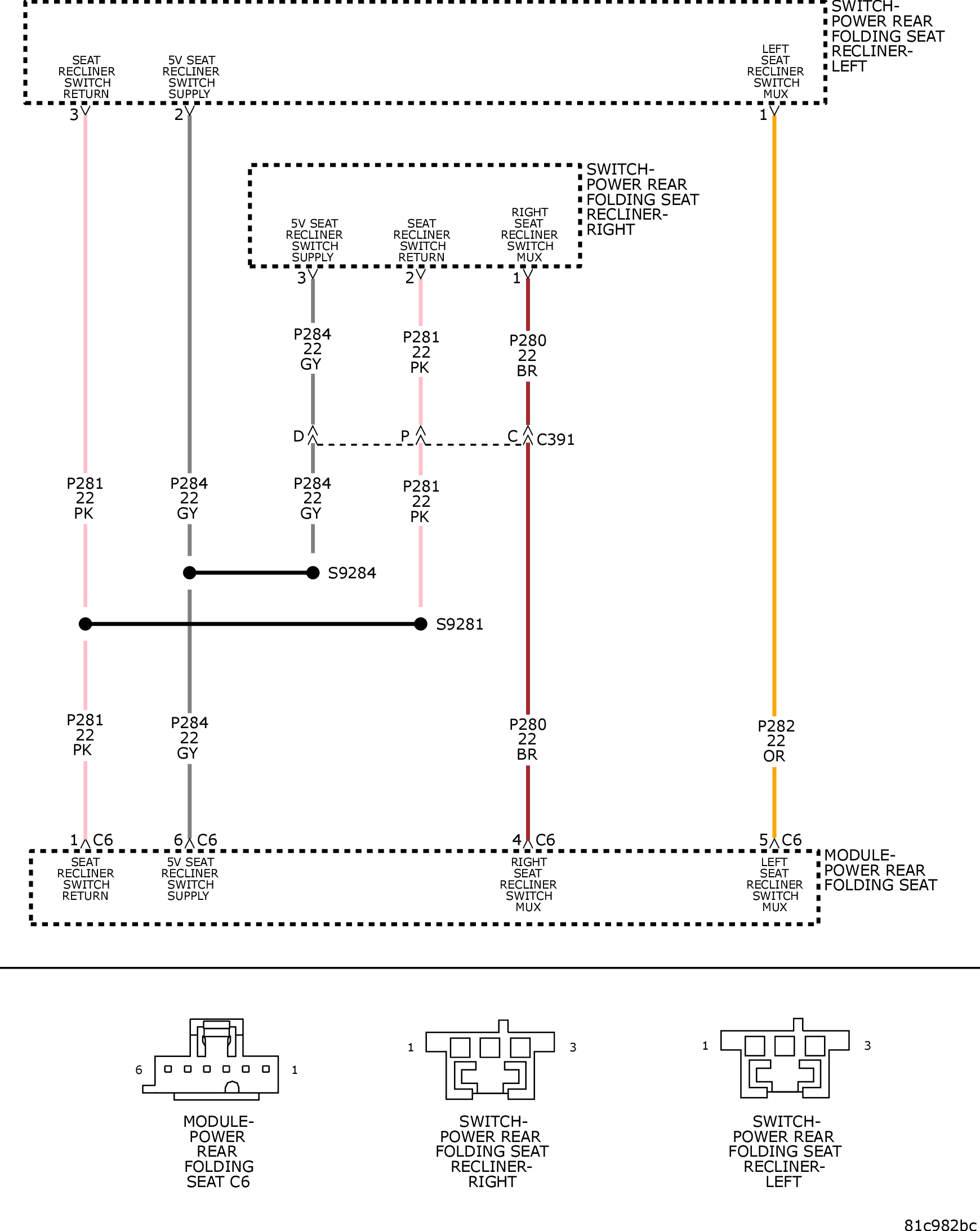

Fig 1: 3rd Row Seat Left/Right Backrest Switch Circuit Wiring Diagram

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
