B1A41-Security Transmitter Sensor Circuit Open: Notes

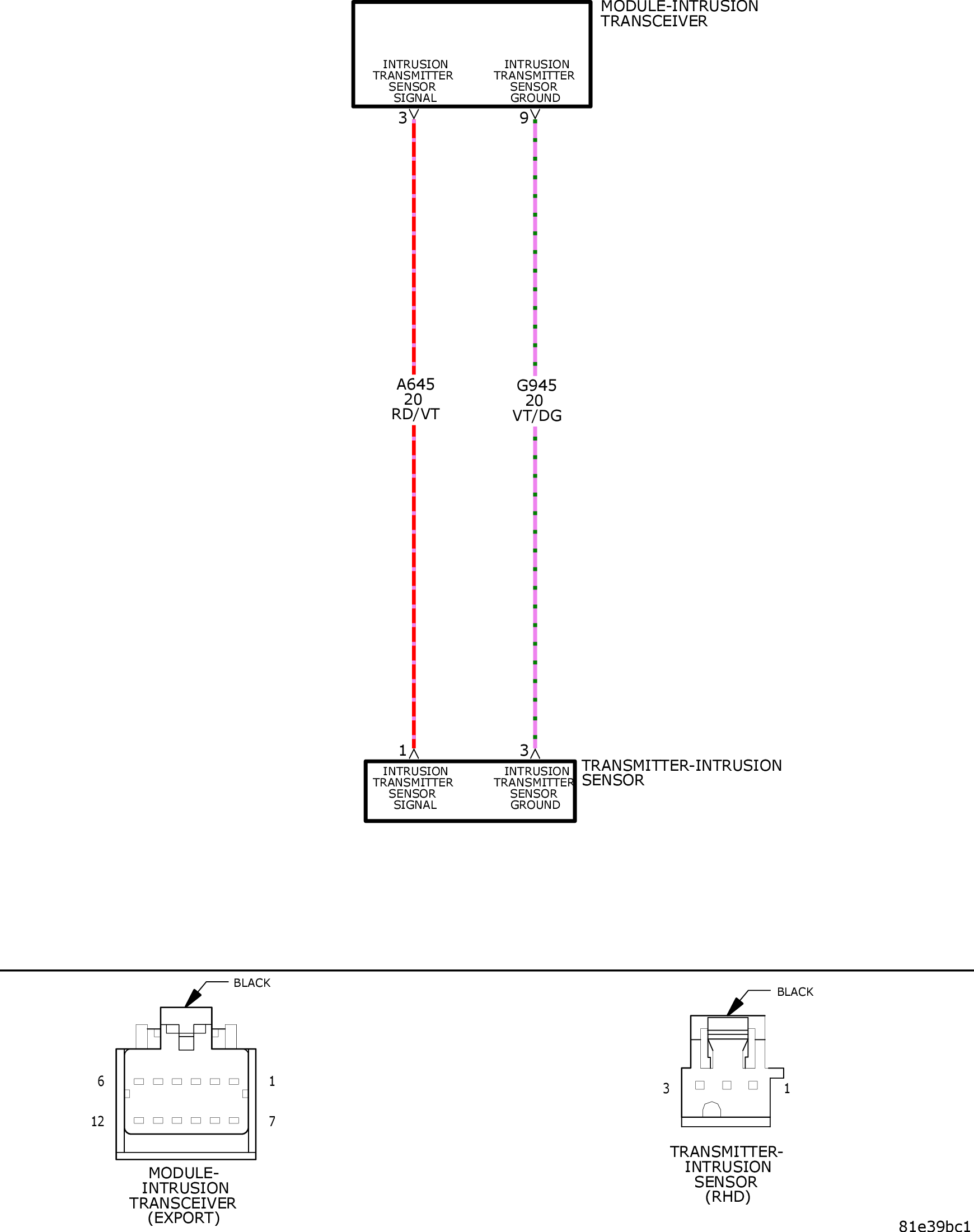

Fig 1: Intrusion Transmitter Sensor Circuit Wiring Diagram
GC0127128Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
