P0330-Knock Sensor 2 Circuit: Notes

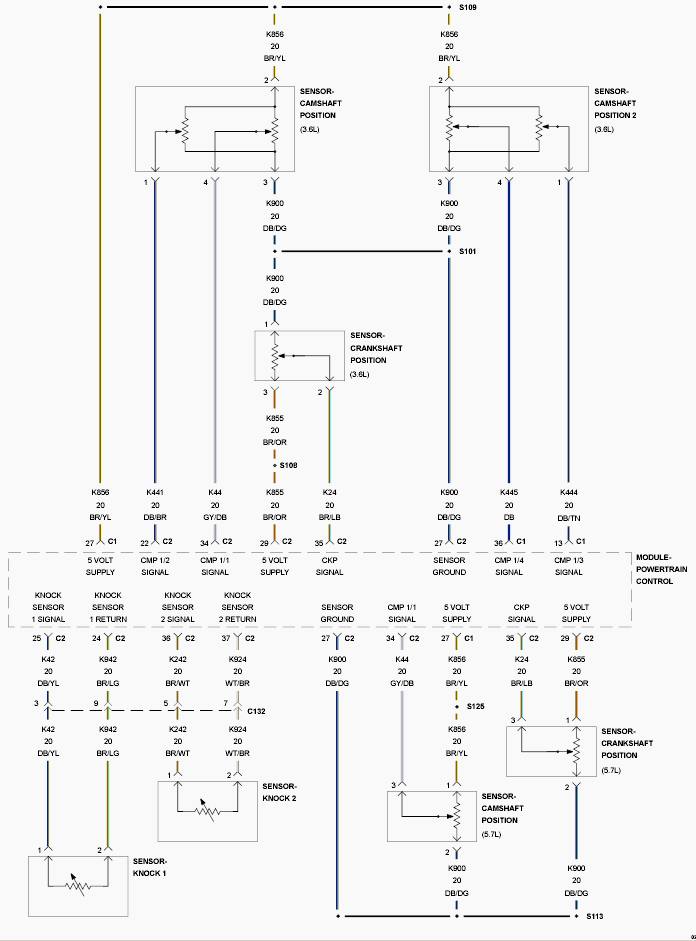

Fig 1: Crankshaft Position System Circuit Schematic

GC0138767

Courtesy of CHRYSLER LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .
