P0208-Fuel Injector 8 Circuit: Notes

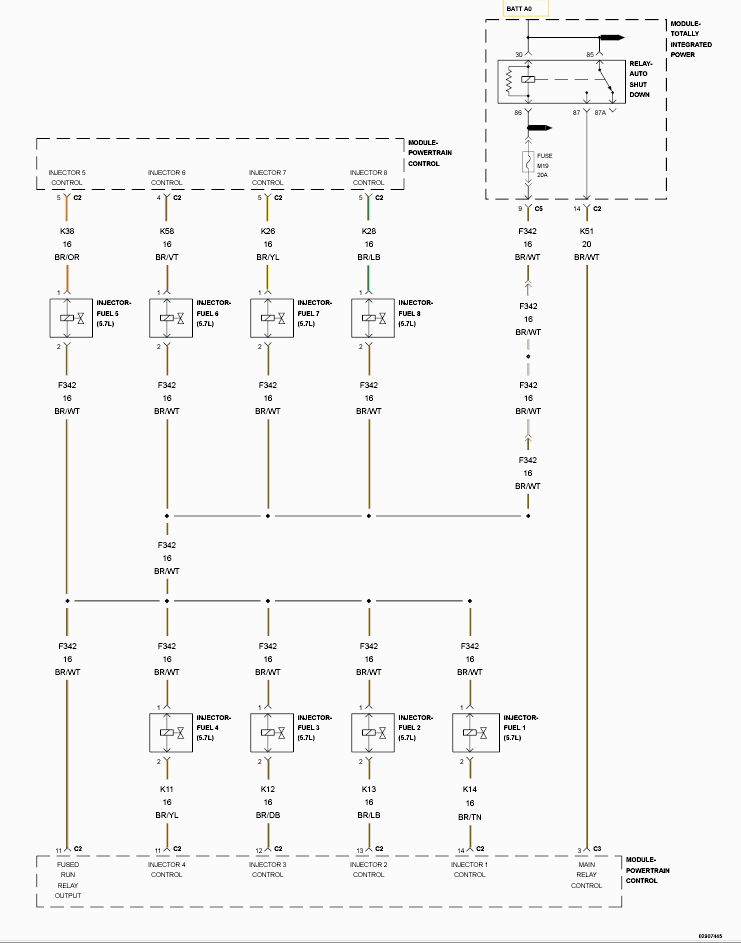

Fig 1: Fuel Injectors Circuit Schematic - 5.7L

GC0149442

Courtesy of CHRYSLER LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .
