P0071-Ambient Air Temperature Sensor Performance: Notes

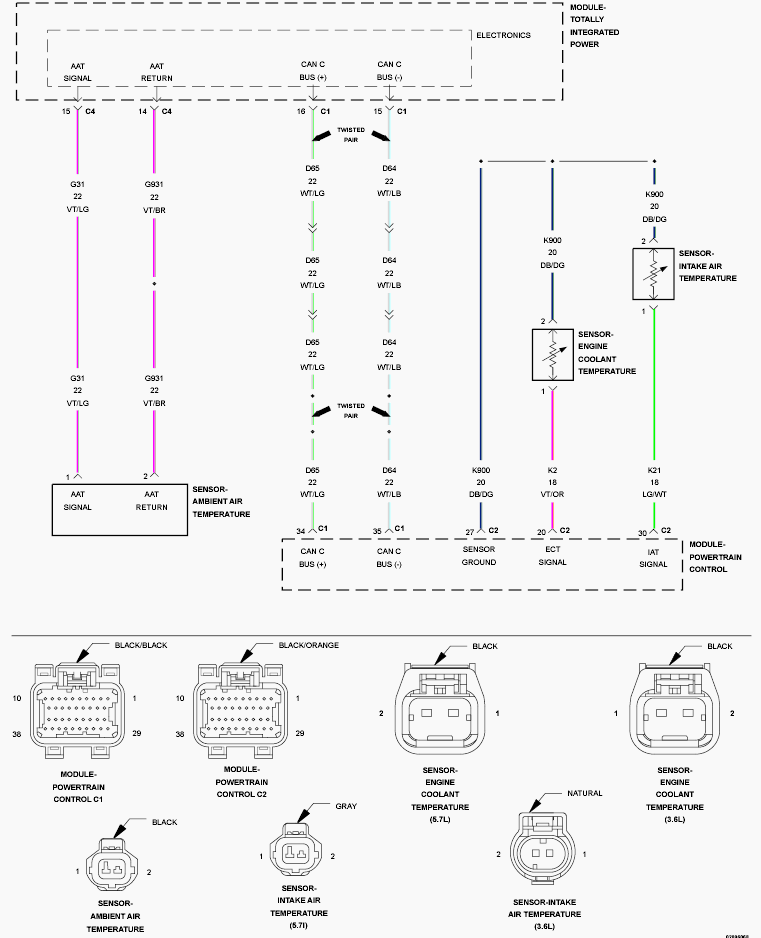

Fig 1: AAT, ECT & IAT Sensors Wiring Diagram
GC0149075Courtesy of CHRYSLER LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
