SHAFT, Select: Installation: Installation

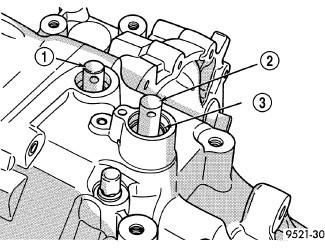

Fig 1: Crossover Shaft Snap Ring

Courtesy of CHRYSLER LLC

1 - SELECTOR SHAFT

2 - CROSSOVER SHAFT

3 - SNAP RING

1. Install select shaft to case and install snap ring (3). Refer to Fig 1.
2. Install the select shaft seal.
3. Assemble transaxle.
