SEAL, Input Flange: Installation: Installation

WARNING: This page is about a different variant/trim than selected.

Fig 1: Clutch Case

Courtesy of CHRYSLER LLC

Using tool 9231A (1), install input flange seal to overrunning clutch case (2).

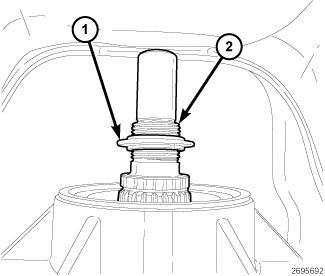

Fig 2: Input Flange Shaft Seal
Courtesy of CHRYSLER LLC
Install input flange shaft seal (1), on shaft threads at midway point of threads (2).

Fig 3: Input Flange Removal/Installation
Courtesy of CHRYSLER LLC

1 - INPUT FLANGE
Install input flange (1).

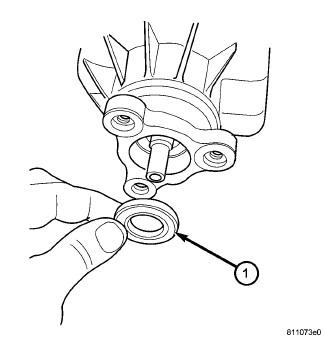

Fig 4: Input Flange Washer
Courtesy of CHRYSLER LLC

1 - WASHER
Install flange washer (1).

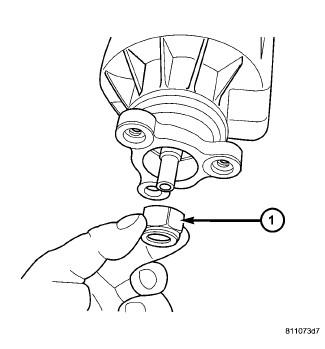

Fig 5: Input Flange Nut Removal/Installation
Courtesy of CHRYSLER LLC

1 - NUT
Install new flange nut (1).

Fig 6: Pinion Flange Nut Removal/Installation
Courtesy of CHRYSLER LLC
Using tool C-3281 (2), torque flange nut to 135 N.m (100 ft. lbs.).

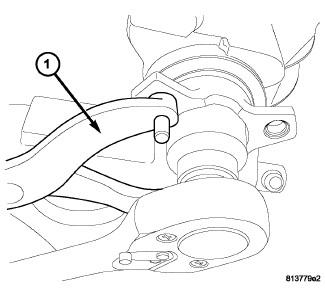

Fig 7: Removing /Installing Propeller Shaft
Courtesy of CHRYSLER LLC
Align marks (4) on propeller shaft rubber coupler (1) to rear axle input flange (5).
Install three rear propeller shaft to rear axle retaining bolts (3) and tighten to 58 N.m (43 ft. lbs.).
Lower vehicle.
