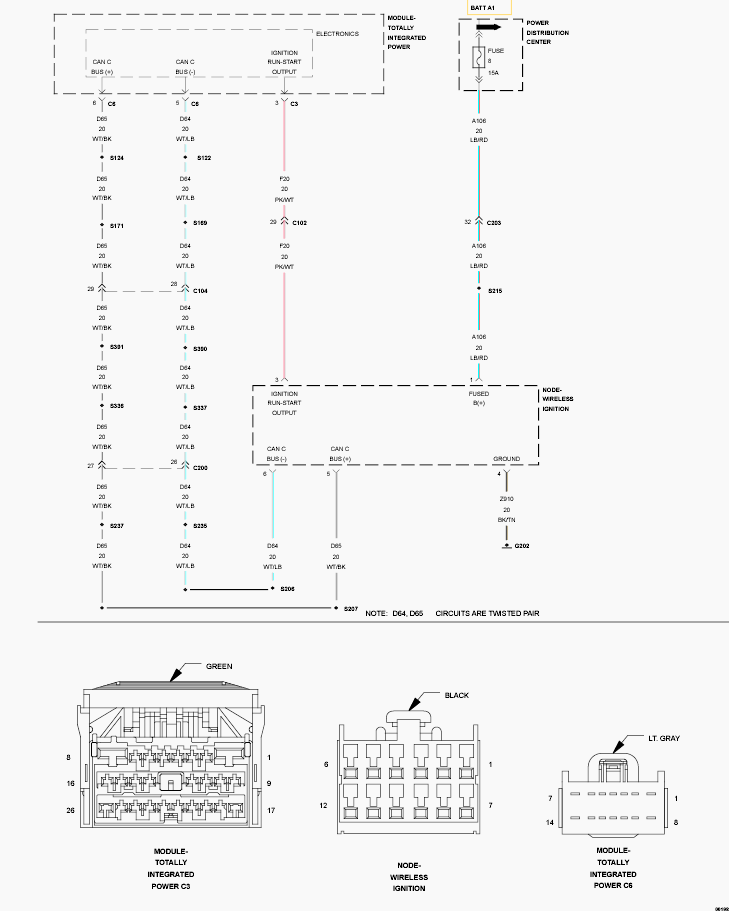

Home >> Dodge and Ram >> 2010 >> Challenger SE >> Repair and Diagnosis >> Engine Performance >> Ignition System >> Wireless Ignition Module (Win) - Electrical Diagnostics >> DTC Troubleshooting >> DTC B1A2F: Key 6 Communication Error >> Circuit Schematic
