Checking The Speed Control Performance: Notes

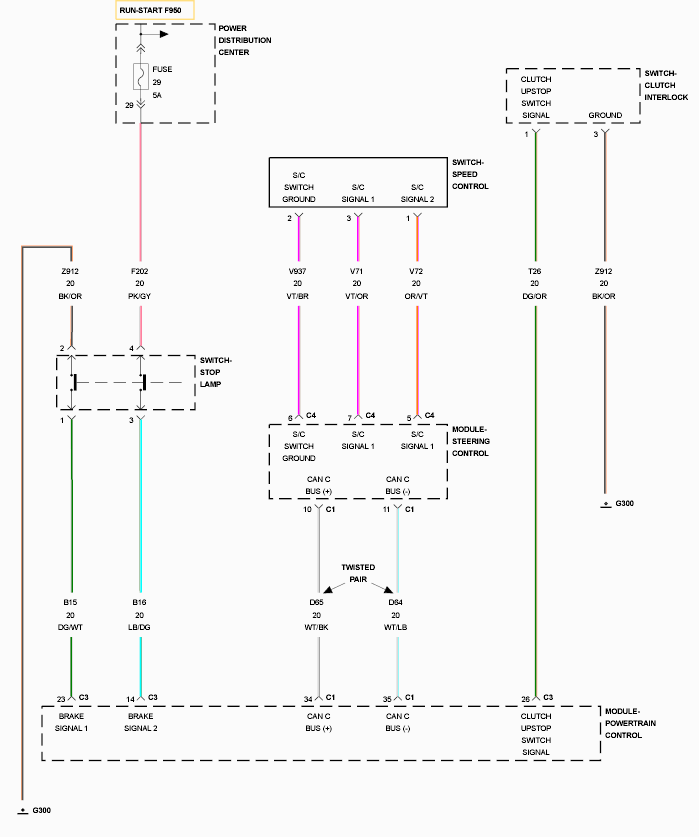

Fig 1: SPEED CONTROL OPERATION SCHEMATIC

GC0133677

Courtesy of CHRYSLER LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article(s).
