Driver Window Inoperative: Notes
 Courtesy of CHRYSLER LLC
|

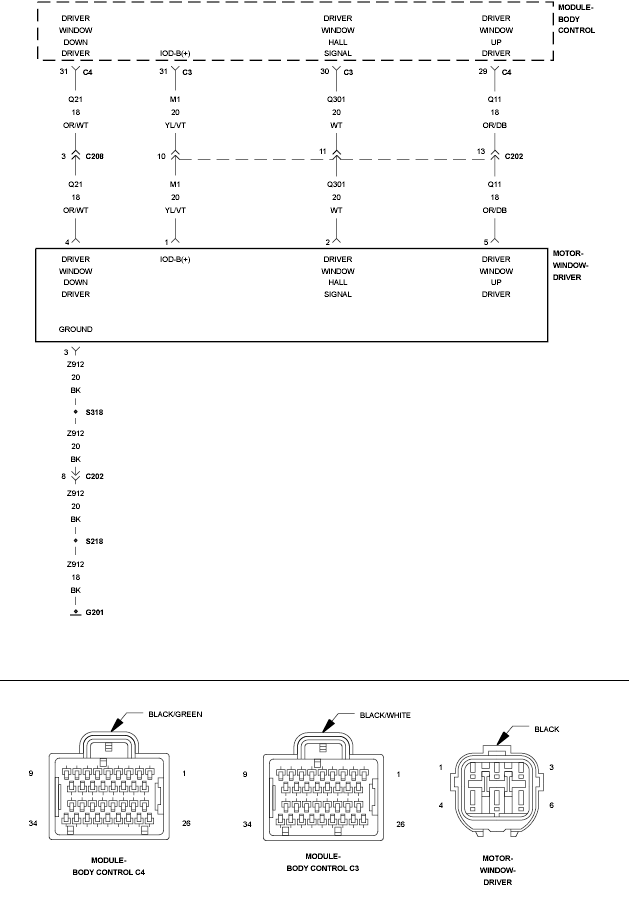

For a complete wiring diagram, refer to the Wiring Information
.
| Possible Causes |
| DTC PRESENT |
| (Q21) DRIVER WINDOW DOWN DRIVER WIRE OPEN |
| (Q11) DRIVER WINDOW UP DRIVER WIRE OPEN |
| (Q11) DRIVER WINDOW UP DRIVER WIRE SHORT TO THE (Q21) DRIVER WINDOW DOWN DRIVER WIRE |
| WINDOW MOTOR |
| BODY CONTROL MODULE (BCM) |
