SWITCH, Speed Control: Installation: Installation

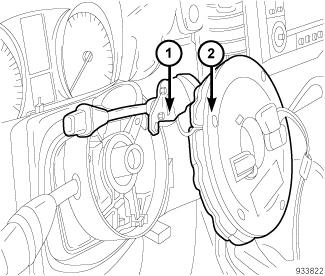

Fig 1: SPEED CONTROL SWITCH

Courtesy of CHRYSLER LLC

1. Install the speed control switch
2. Install the switch mounting screw. Refer to SPECIFICATIONS  .
3. Plug pigtail electrical connector into instrument panel wiring harness. Be sure wires are not pinched.
4. Install the clockspring. Refer to Restraints/CLOCKSPRING - Installation
5. Install negative battery cable to battery.
