DTC 0009: PRNDL Control Circuit Low: Notes

Courtesy of CHRYSLER LLC

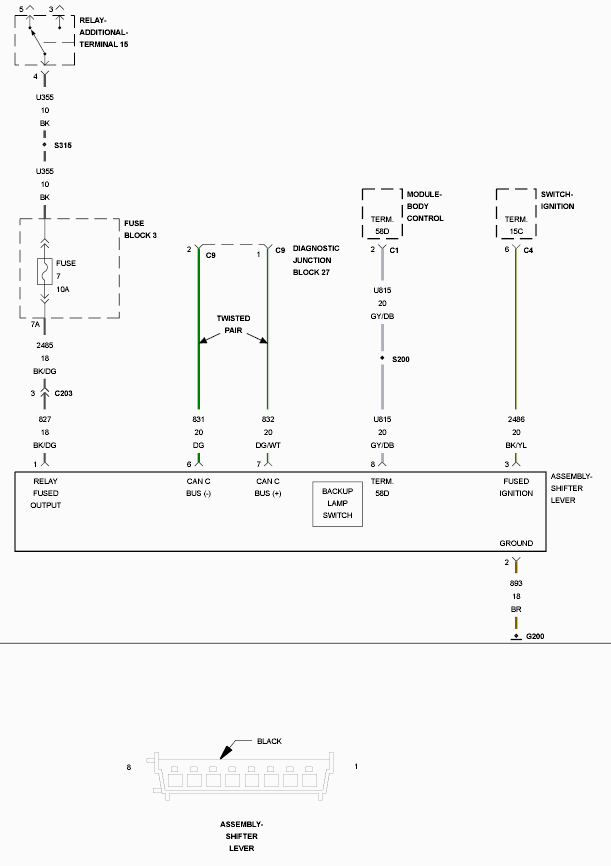

For complete wiring diagrams, refer to SYSTEM WIRING DIAGRAMS .

• When Monitored:

  Continuously with the ignition key on.

• Set Condition:

  This DTC will set if the ESM detects a shorted circuit from the BCM for 10 seconds.

Always perform the NAG1 Pre-Diagnostic Troubleshooting procedure before proceeding. Refer to  DTC-Based Diagnostics/MODULE, Transmission Control (TCM) - Standard Procedure  .
