Home >> Dodge and Ram >> 2009 >> Sprinter 2500, Van Cargo >> Repair and Diagnosis >> Engine Performance >> System >> DRIVEABILITY - Diesel - Non-DTC-Based Diagnostics >> Diagnosis and Testing >> Checking The Accelerator Pedal Position Sensor Calibration >> Notes

Checking The Accelerator Pedal Position Sensor Calibration: Notes

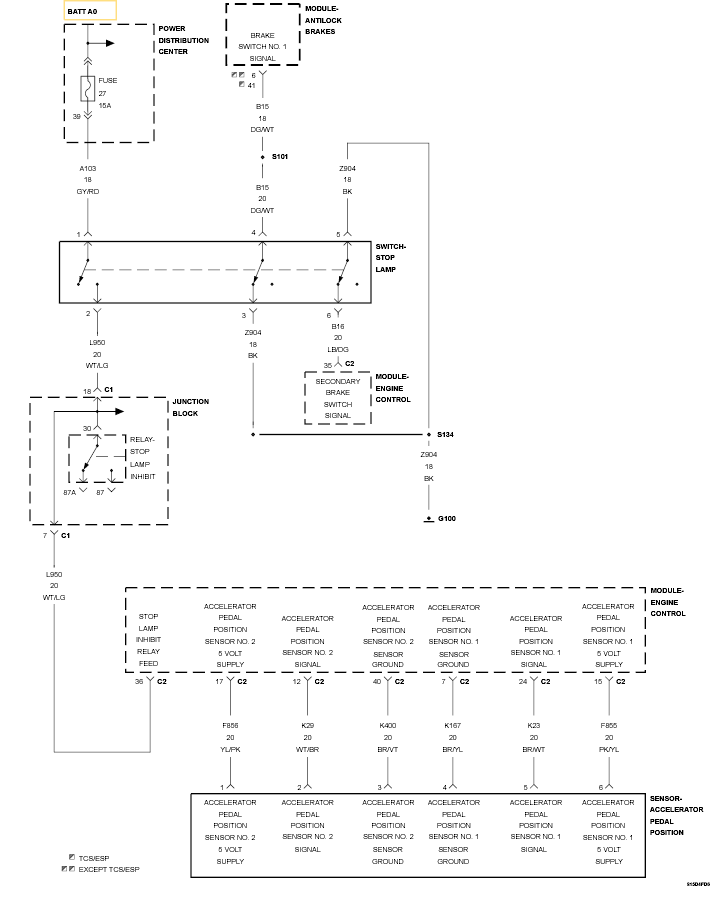

GC0119970

Courtesy of CHRYSLER LLC

For complete wiring diagrams, refer to SYSTEM WIRING DIAGRAMS .

Possible Causes
APP SENSOR 1
APP SENSOR 2
