DTC 90C1: Front Security Sensor Circuit High: Notes

Courtesy of CHRYSLER LLC

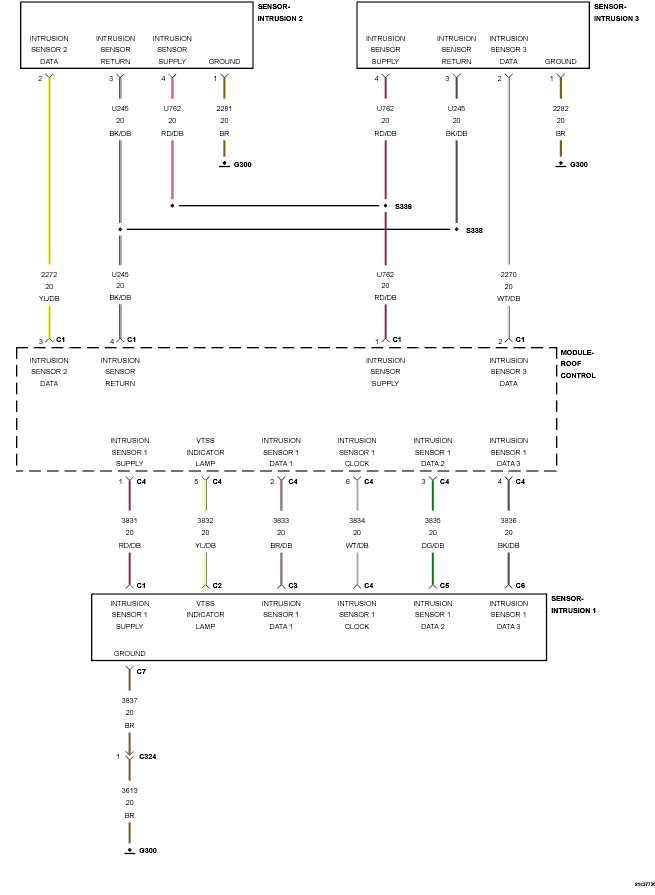

For complete wiring diagrams, refer to SYSTEM WIRING DIAGRAMS .

• When Monitored:

  Continuously while the VTSS is armed.

• Set Condition:

  If the Roof Control Module detects unwanted voltage at the Intrusion 1 Sensor Data circuits.
