DTC 90C0: Rain Light Sensor Circuit High-RCM: Notes

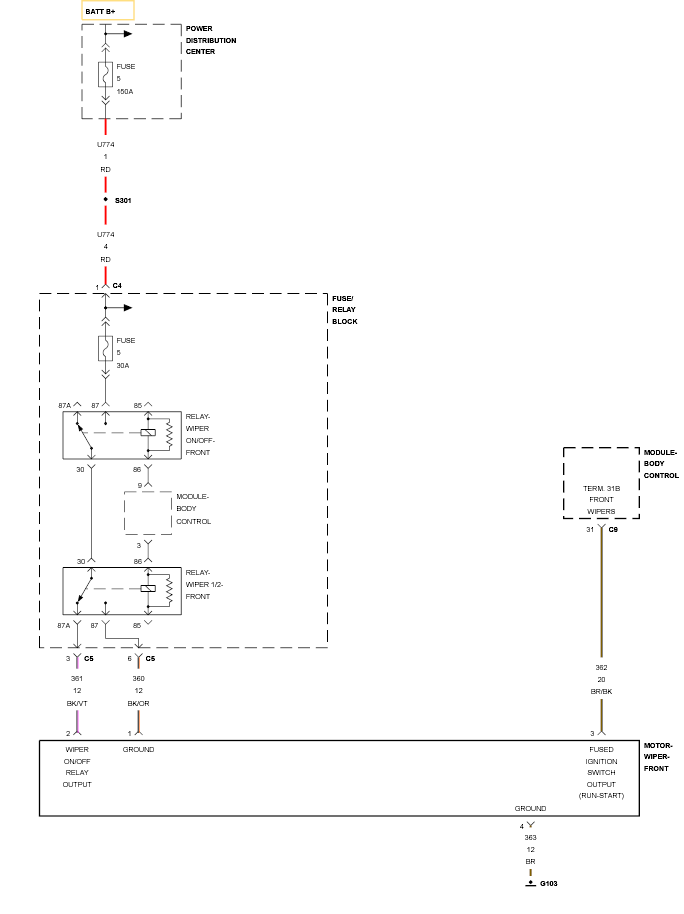

For complete wiring diagrams, refer to SYSTEM WIRING DIAGRAMS .
- When Monitored:
With the wipers on.
- Set Condition:
When the RCM detects a short/HIGH condition.
| Possible Causes |
|---|
| RAIN/LIGHT SENSOR |
| SHORTED CIRCUIT |
| ROOF CONTROL MODULE |
