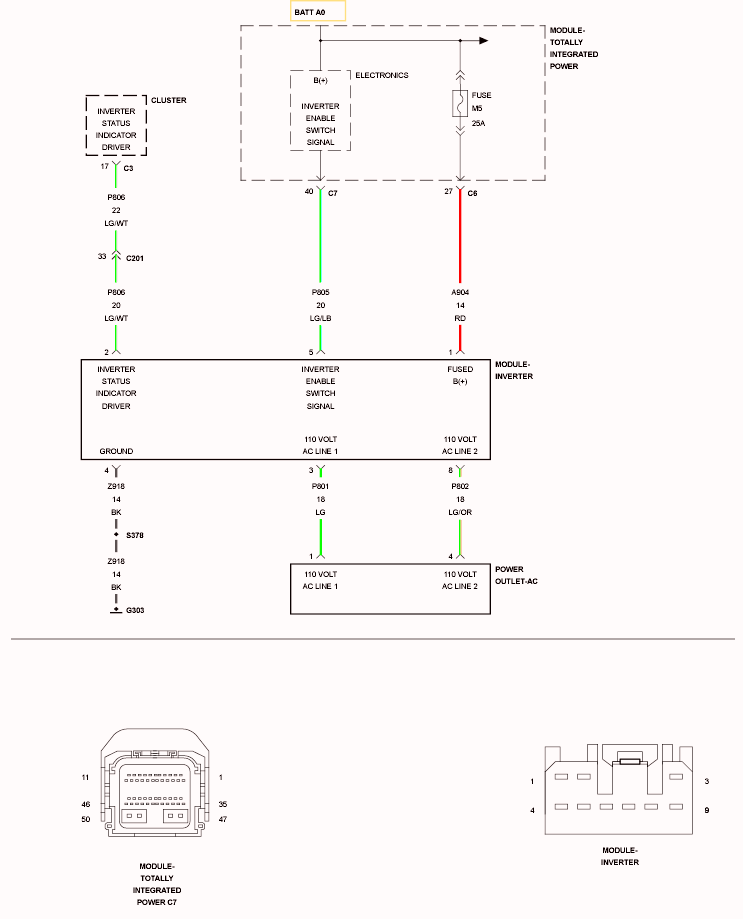

Home >> Dodge and Ram >> 2009 >> Nitro SLT, 4WD >> Repair and Diagnosis >> Engine Performance >> Ignition System >> (Totally Integrated Power Module (TIPM) - Electrical Diagnostics) >> DTC Troubleshooting >> P129C-Inverter Control Circuit High >> Circuit Schematic
