SWITCH, Speed Control: Installation: Installation

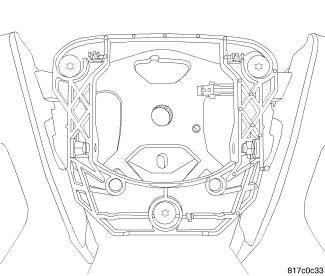

Fig 1: SPEED CONTROL SWITCH

Courtesy of CHRYSLER LLC

Mounting hole (1) uses a screw. Depending on model line, mounting holes (2) may use either two screws, or one screw and a locating pin.

Fig 2: Speed Control Switch Mounting Screw

Courtesy of CHRYSLER LLC

1. Connect electrical connector to speed control switch.
2. Install speed control switch mounting screws.
3. Tighten screws (1) to 1.6 N.m (15 in. lbs.). Make sure rubber seal is in place around switch.
   Fig 3: Horn Switch

   Courtesy of CHRYSLER LLC
4. Install horn switch.
5. Install three mounting fasteners.
6. Connect electrical connector to clockspring.
7. Install driver airbag. Refer to Restraints/AIR BAG, Driver - Installation
   WARNING: Do not connect battery negative cable yet. Refer first to airbag system test. Refer to Restraints - Diagnosis and Testing
8. Reconnect battery using Airbag System Test procedure in Restraints. Refer to Restraints - Diagnosis and Testing
9. Close hood.
10. Verify vehicle and system operation.
