Home >> Dodge and Ram >> 2009 >> Journey R/T, AWD >> Repair and Diagnosis >> Engine Performance >> System >> DTCS P2185 To U0168 - GPEC >> P2431-Secondary Air Injection System Air Flow Sensor Circuit Performance >> Circuit Schematic

Circuit Schematic

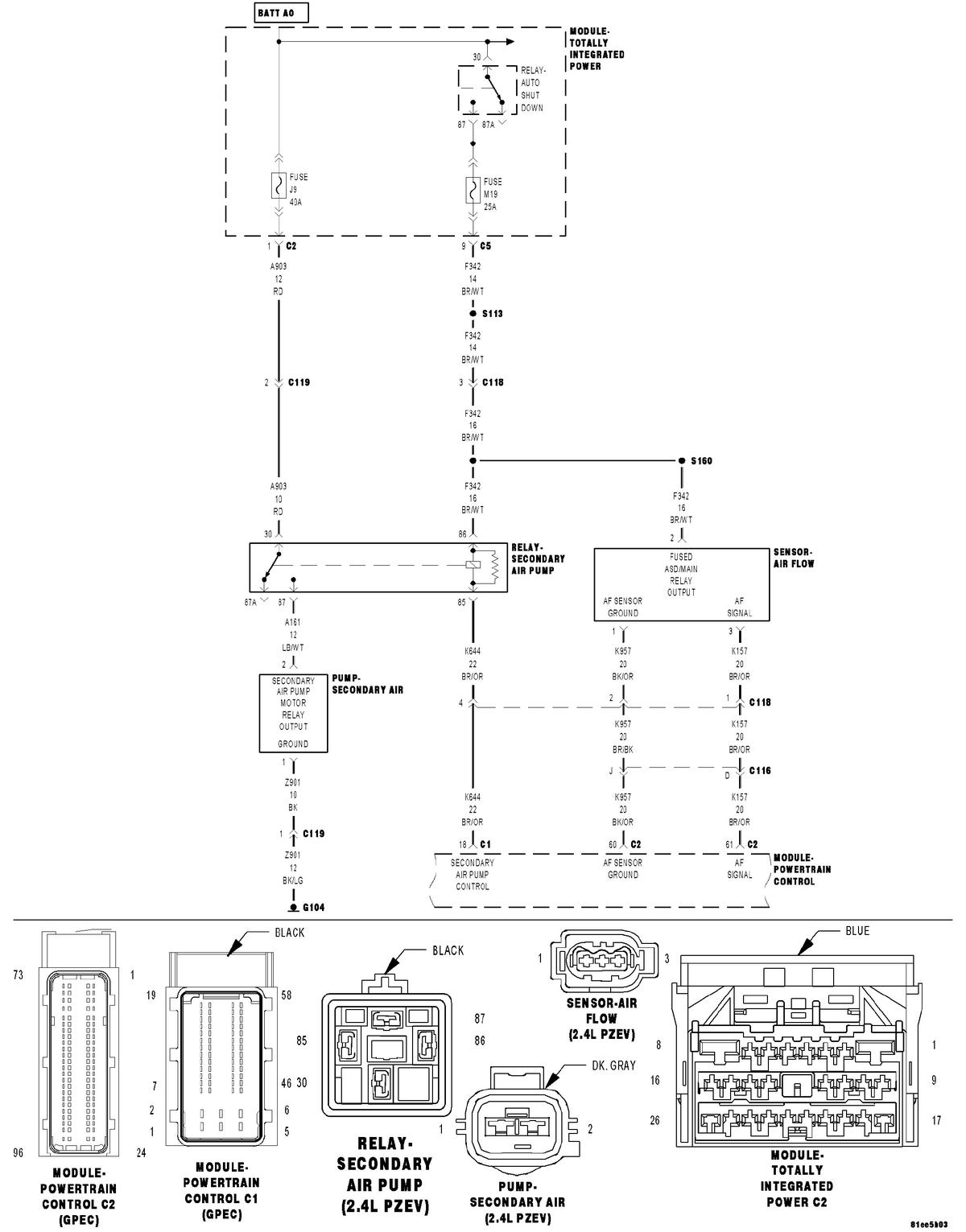

Fig 1: Secondary Air Injection System Control Circuit Schematic

GC0129818

Courtesy of CHRYSLER LLC
