Home >> Dodge and Ram >> 2009 >> Journey R/T, AWD >> Repair and Diagnosis >> Engine Performance >> System >> DTCS P2106 To P2184 - GPEC >> P2181-Cooling System Performance >> Circuit Schematic

Circuit Schematic

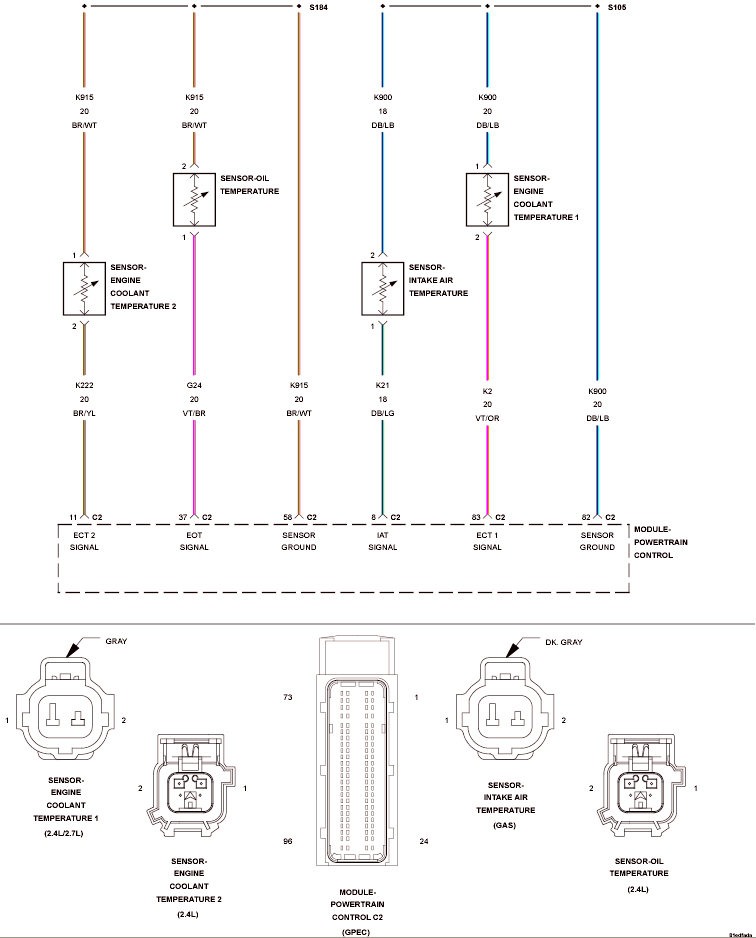

Fig 1: AAT, ECT, And IAT Sensor Circuit Schematic

GC0129793

Courtesy of CHRYSLER LLC
