Checking The Map Sensor Performance: Notes

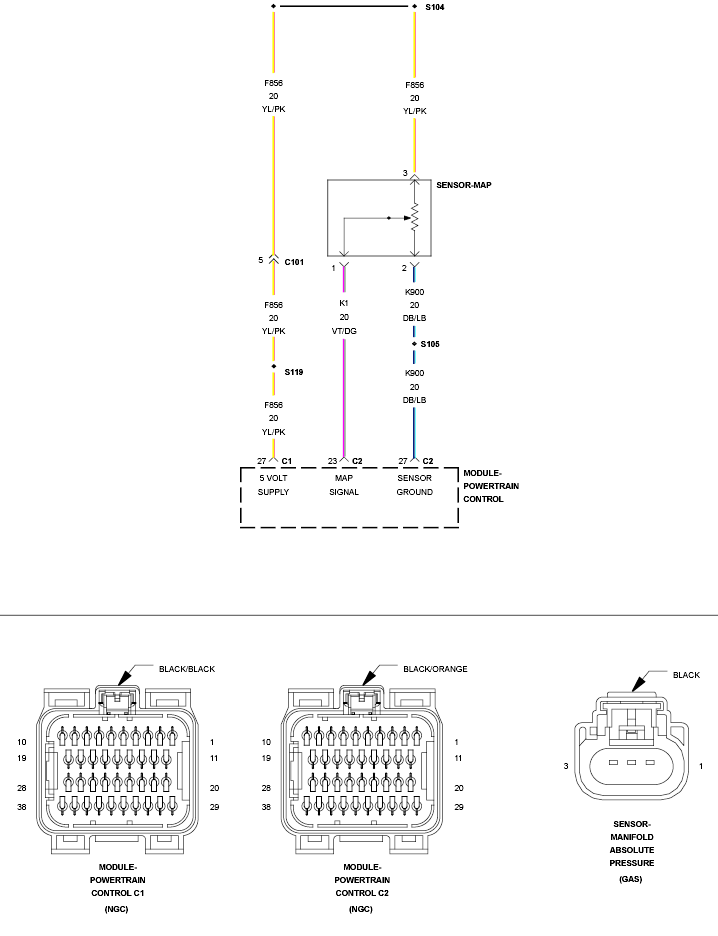

Fig 1: Manifold Absolute Pressure Sensor Circuit Schematic

GC0129871

Courtesy of CHRYSLER LLC

For complete wiring diagrams, refer to SYSTEM WIRING DIAGRAMS .
