Home >> Dodge and Ram >> 2009 >> Durango Hybrid >> Repair and Diagnosis >> Engine Performance >> System >> DTCS P0688 To P1456 >> P1446-Fuel Tank Control System Performance - HEV >> Circuit Schematic

Circuit Schematic

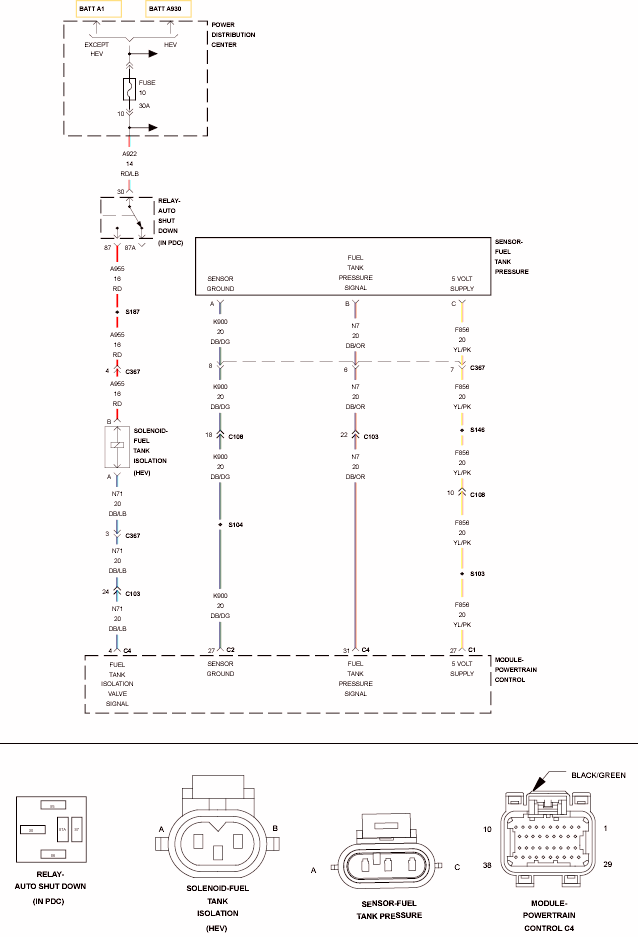

Fig 1: Fuel Tank Pressure Sensor Circuit Schematic

GC0106767

Courtesy of CHRYSLER LLC
