Circuit Schematic

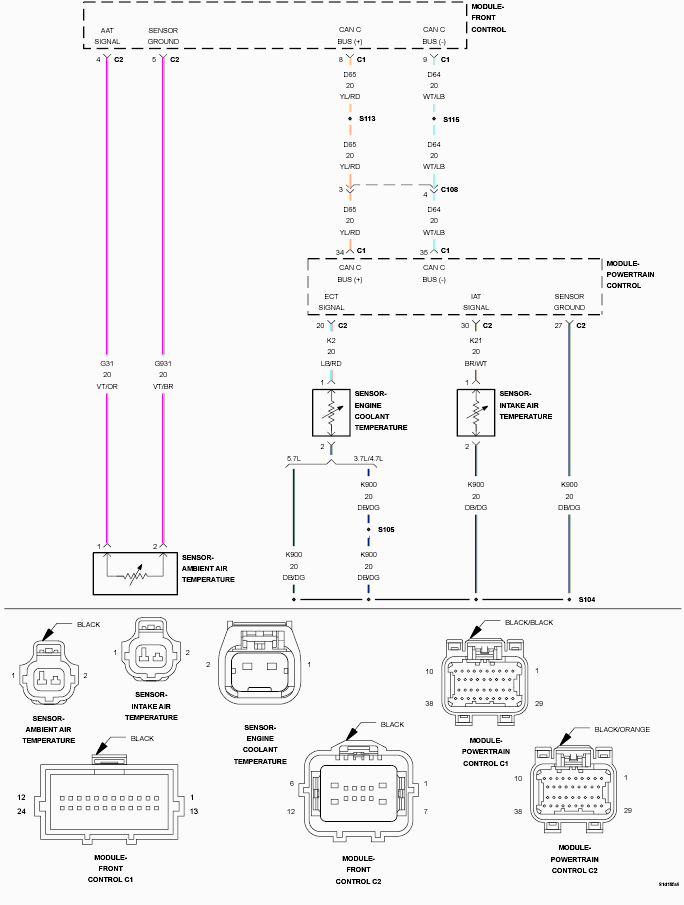

Fig 1: AAT, ECT And IAT Sensor Circuit Schematic

GC0106659

Courtesy of CHRYSLER LLC
