P0841-LR Pressure Switch Rationality: Notes

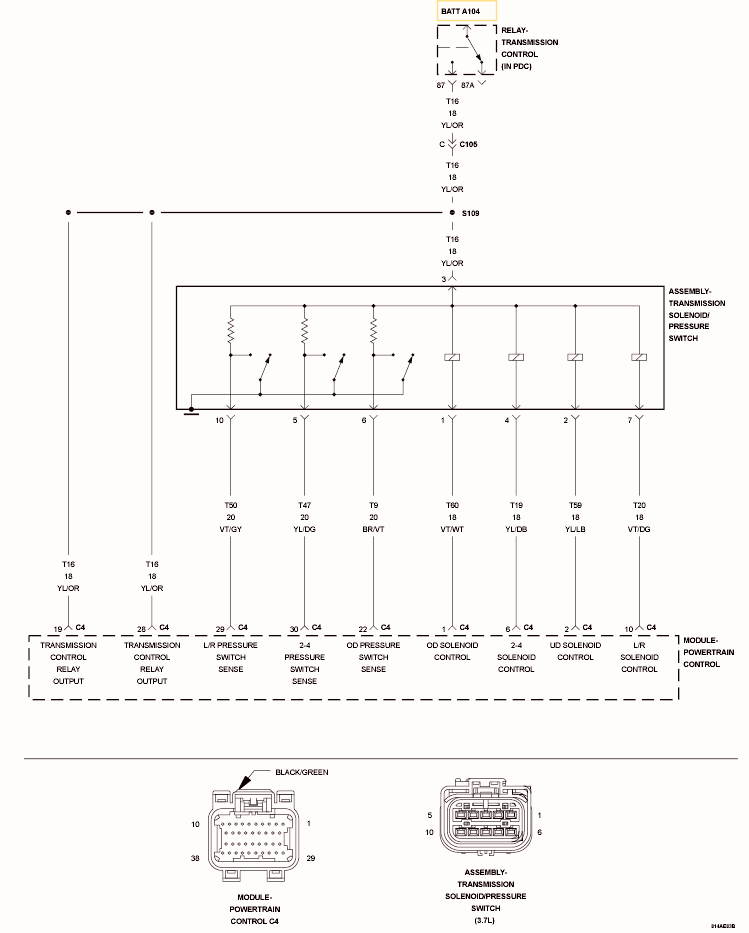

Fig 1: A/T Solenoid Pressure Switch Circuit

GC0106868

Courtesy of CHRYSLER LLC
