P0532-A/C Pressure Sensor Circuit Low: Wiring Diagram

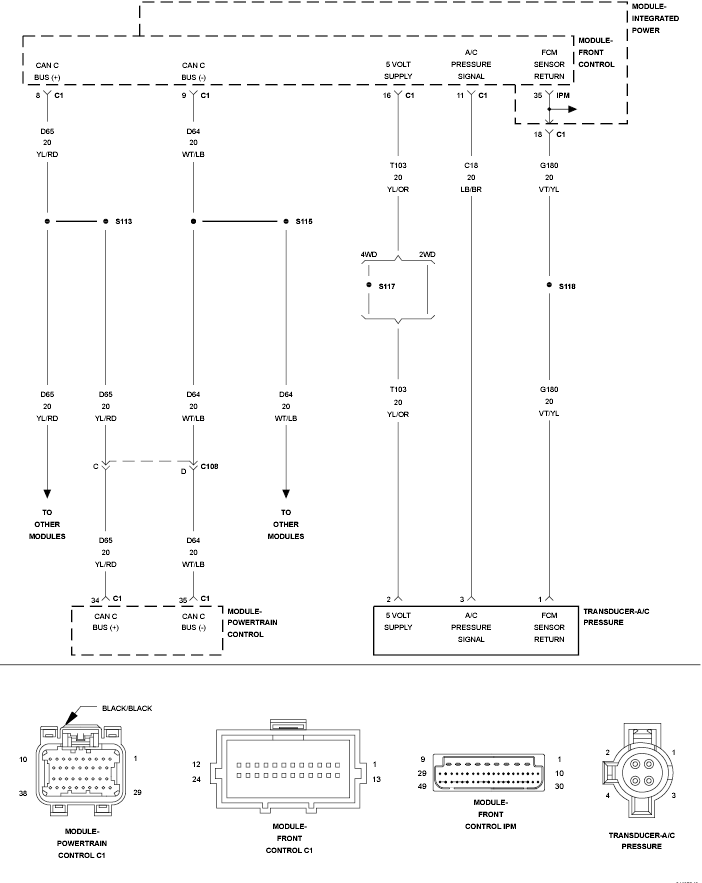

Fig 1: A/C Pressure Sensor Circuit

GC0106286

Courtesy of CHRYSLER LLC

For complete wiring diagrams, refer to SYSTEM WIRING DIAGRAMS .
