B230E-Rear Wiper Park Switch Input Circuit Open: Wiring Diagram

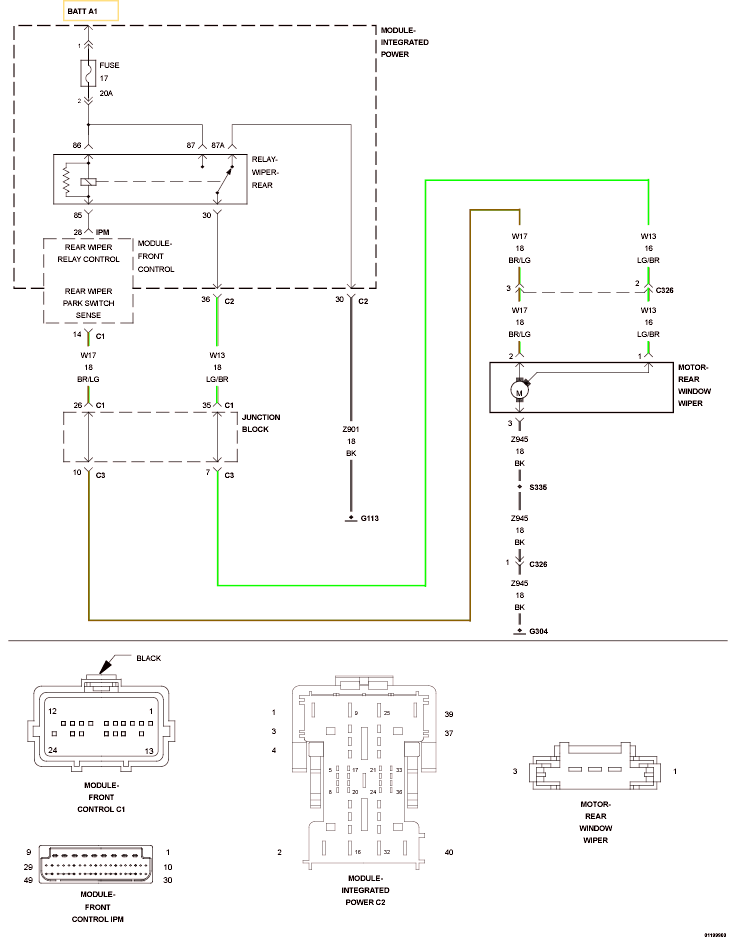

Fig 1: Wiper Park Switch Input Circuit

GC0106221

Courtesy of CHRYSLER LLC

For complete wiring diagrams, refer to SYSTEM WIRING DIAGRAMS .
