B2134-Ignition Run/Start (Remote Start) Control Circuit High: Wiring Diagram

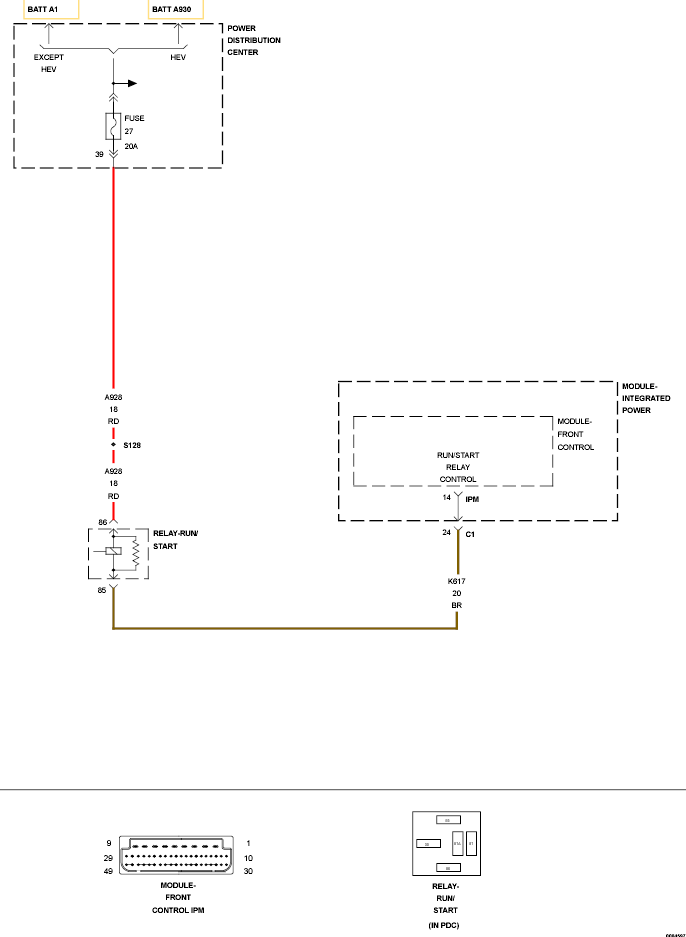

Fig 1: Ignition Run/Start (Remote Start) Control Circuit
GC0106207Courtesy of CHRYSLER LLC

For complete wiring diagrams, refer to SYSTEM WIRING DIAGRAMS .
