B2100-Ignition Run/Start Input Circuit Performance: Wiring Diagram

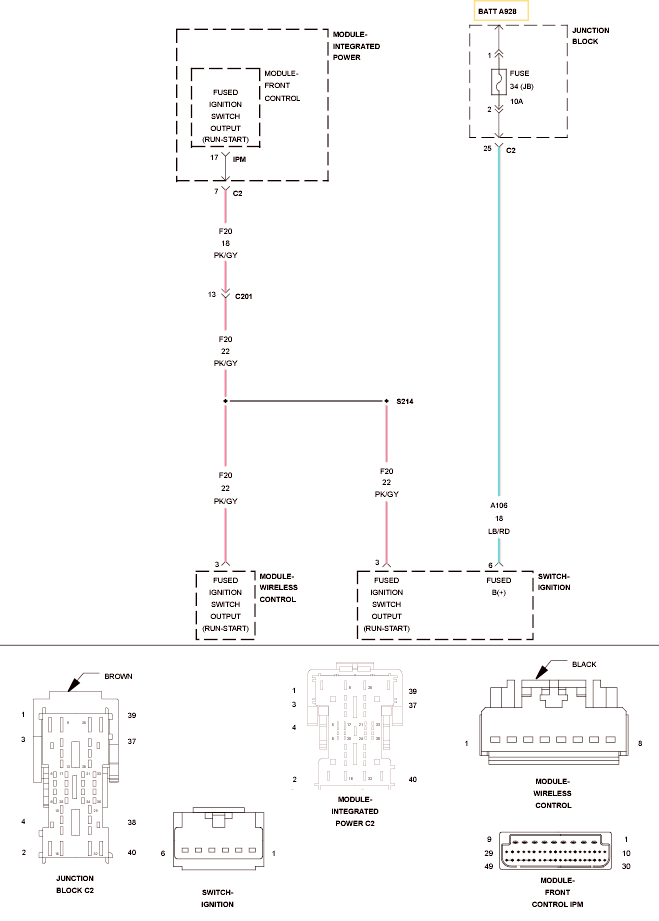

Fig 1: Ignition Run/Start Input Circuit

GC0106195

Courtesy of CHRYSLER LLC

For complete wiring diagrams, refer to SYSTEM WIRING DIAGRAMS .
