B1633-Left Hi Beam Control Circuit Low: Wiring Diagram

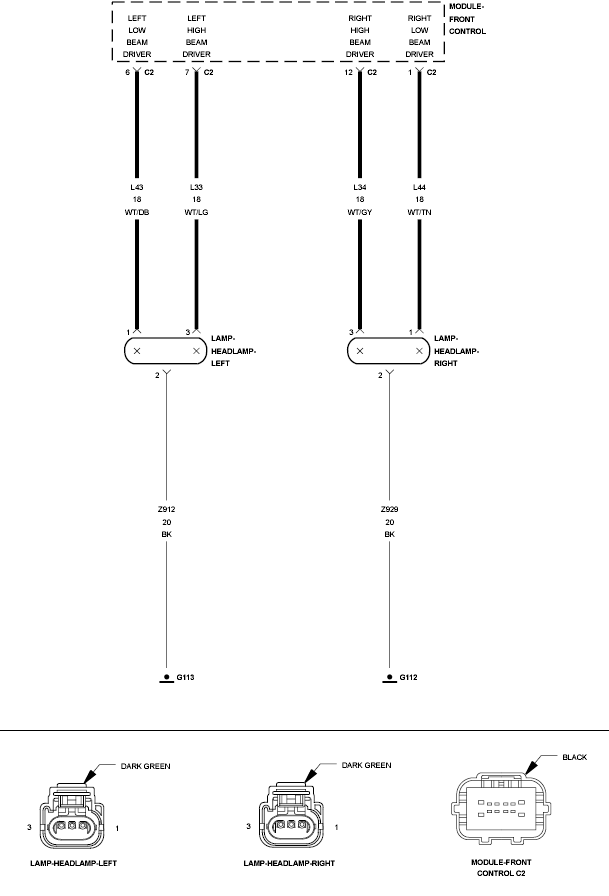

Fig 1: High Beam Control Circuit

GC0106164

Courtesy of CHRYSLER LLC

For complete wiring diagrams, refer to SYSTEM WIRING DIAGRAMS .
