Charging System (Service Information): Generator: Installation: 3.7L/4.7L

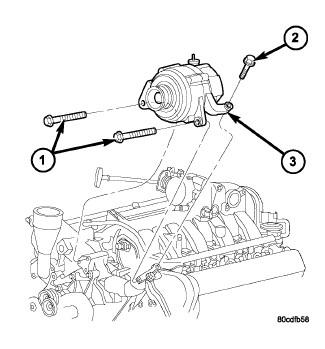

Fig 1: Generator - 3.7L/4.7L

Courtesy of CHRYSLER LLC

1. Position the generator (3) to the engine and install the two horizontal bolts (1) and one vertical bolt (2).
2. Tighten the two horizontally mounted bolts to 55 N.m (40 ft. lbs.). Tighten the vertically mounted bolt to 55 N.m (40 ft. lbs.).

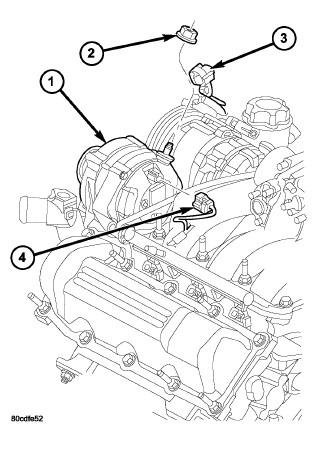

   Fig 2: Generator Connectors - 3.7L/4.7L

   Courtesy of CHRYSLER LLC
3. Snap the field wire electrical connector (4) into the rear of the generator.
4. Install the B+ terminal eyelet to the generator output stud. Tighten the mounting nut (2) to 12 N.m (9 ft. lbs.).
   CAUTION: Never force a belt over a pulley rim using a screwdriver. The synthetic fiber of the belt can be damaged.
   CAUTION: When installing a serpentine accessory drive belt, the belt must be routed correctly. The water pump may be rotating in the wrong direction if the belt is installed incorrectly, causing the engine to overheat. Refer to belt routing label in engine compartment, or Refer to BELT, SERPENTINE .
5. Install the generator drive belt. Refer to Cooling/Accessory Drive/BELT, Serpentine - Installation
6. Install the negative battery cable.
