Diagnostic Test

TEST FOR INTERMITTENT CONDITION
1. Turn the ignition on.
2. Clear all TIPM DTCs.
3. Turn the Left Turn Signal on.
4. With the scan tool, read DTCs.
  Does the scan tool read: B1644-REAR LEFT TURN CONTROL CIRCUIT HIGH?

  Yes
  - Go to step 2
  No
  - The conditions that caused this code to set are not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
  - Perform the BODY VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
LEFT REAR TURN SIGNAL LAMP
1. Turn the ignition off.
2. Inspect the Left Rear Turn Signal Lamp assembly for an open condition.
  Is the inoperative bulb OK?

  Yes
  - Go to step 3
  No
  - Replace the inoperative bulb in accordance with the Service Information.
  - Perform the BODY VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure

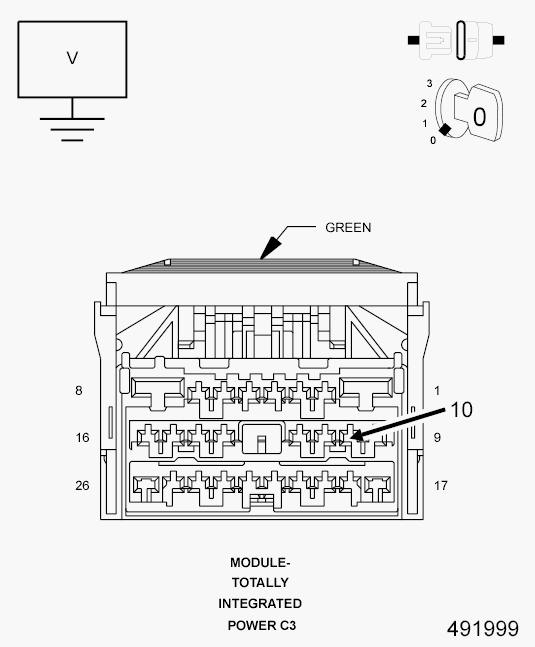

TOTALLY INTEGRATED POWER MODULE

Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the TIPM C3 connector.
3. Measure the voltage between (L63) Left Rear Turn Signal Control circuit and ground.
  Is there any voltage present?

  Yes
  - Repair the (L63) Left Rear Turn Signal Control circuit for an open condition.
  - Perform the BODY VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure
  No
  - Replace the Totally Integrated Power Module in accordance with the Service Information.
  - Perform the BODY VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
