P2432-Secondary Air Injection System Air Flow Sensor Circuit Low: Notes

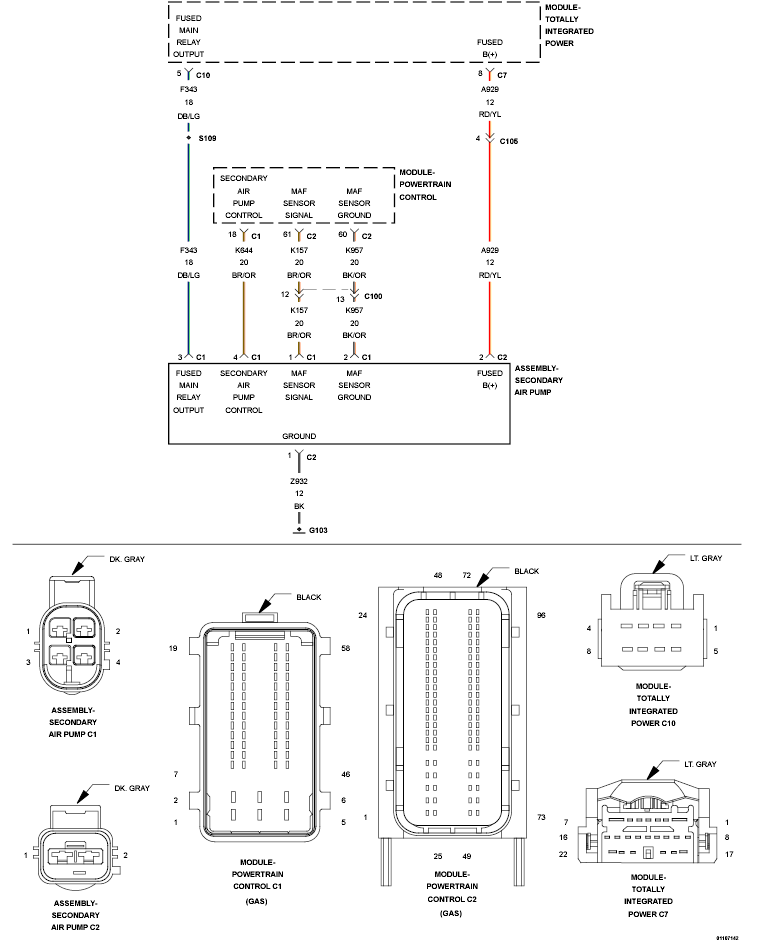

Fig 1: Secondary Air Injection System Control Circuit

GC0099891

Courtesy of CHRYSLER LLC
