Home >> Dodge and Ram >> 2008 >> Magnum Base >> Repair and Diagnosis >> Engine Performance >> System >> DTCS P0646 To P1501 >> P0685-Auto Shutdown Control Circuit >> Circuit Schematic

Circuit Schematic

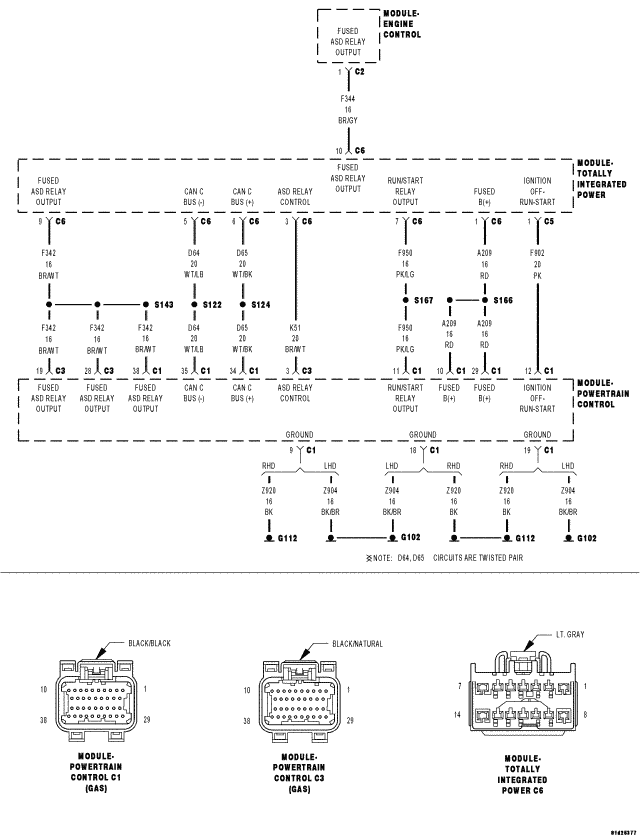

Fig 1: Auto Shutdown Control Circuit Schematic

GC0070368

Courtesy of CHRYSLER LLC
