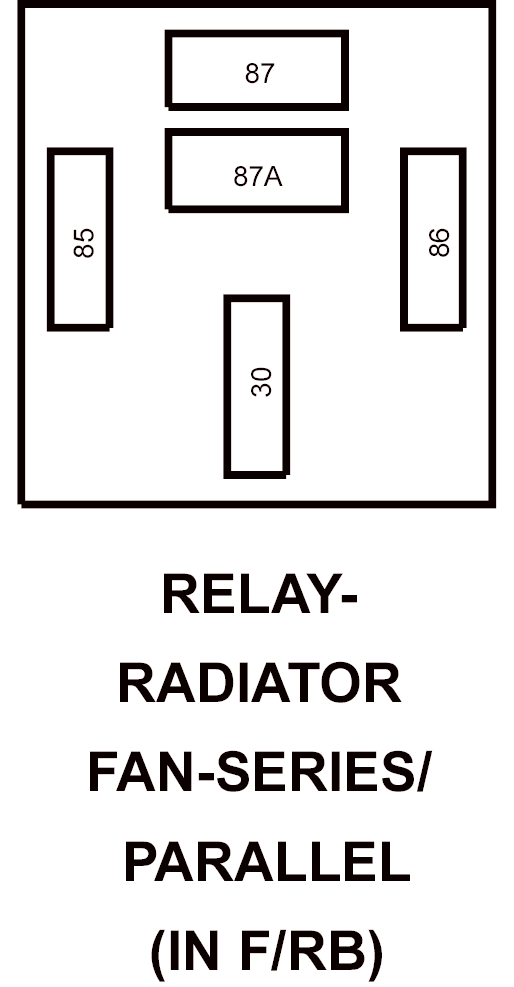

Radiator Fan Series/Parallel Relay Connector End View
RELAY-RADIATOR FAN-SERIES/PARALLEL
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 30 |
N210 12DB/DG |
SERIES/PARALLEL RAD FAN RELAY FEED |
| 85 |
A935 12RD/LB |
FUSED B(+) |
| 86 |
N112 12DB/OR |
RAD FAN RELAY CONTROL |
| 87 |
Z901 12BK |
GROUND |
| 87A |
N24 12DG/DB |
RAD FAN RELAY OUTPUT |
