Home >> Dodge and Ram >> 2008 >> Caliber R/T, AWD >> Repair and Diagnosis >> Quick Lookups >> Wiring Diagrams >> Connector End Views >> Connector Pin-Outs >> Fuses Connector End View

Fuses Connector End View

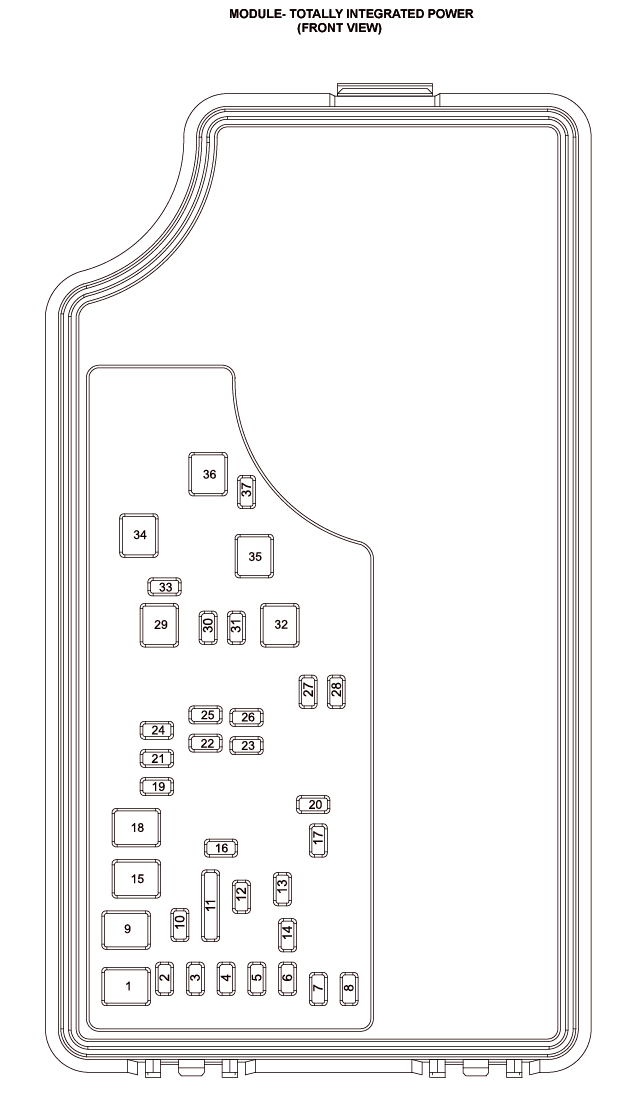

FUSES

GPM813002Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 - -
2 A923 18RD/WT FUSED B(+) (AWD)
3 A924 20DG/WT FUSED B(+) (BASE)
3 A924 20RD FUSED B(+) (EXCEPT BASE)
4 A952 20RD/OR FUSED B(+)
5 A100 18RD/VT FUSED B(+)
6 A417 20RD/DG FUSED B(+) (I.O.D.)
7 INTERNAL FUSED B(+) (I.O.D.)
8 INTERNAL FUSED B(+) (I.O.D.)
9 - -
10 A932 18RD/BR FUSED B(+)
11 - -
12 A999 18RD/PK FUSED B(+) (EXCEPT EXPORT)
13 F985 18PK/YL FUSED IGNITION SWITCH OUTPUT (RUN-ACC)
14 A412 20RD/DB FUSED B(+) (I.O.D.)
15 A16 12RD/BR FUSED B(+)
16 INTERNAL FUSED IGNITION SWITCH OUTPUT (RUN-ACC)
17 A411 20RD/LG FUSED B(+) (I.O.D.)
18 A14 12RD/YL FUSED B(+)
19 INTERNAL FUSED B(+) (I.O.D.) (MIDLINE/HIGHLINE)
20 A413 18RD/LB FUSED B(+) (I.O.D.)
21 INTERNAL FUSED B(+) (I.O.D.)
22 F929 20PK/RD FUSED IGNITION SWITCH OUTPUT (RUN)
23 F344 18DB/LB FUSED MAIN RELAY OUTPUT
24 A927 20RD/GY FUSED B(+) (EXCEPT BASE)
25 C16 20DB/GY FUSED REAR WINDOW DEFOGGER CONTROL OUTPUT (EXCEPT BASE)
26 F343 18DB/LG FUSED MAIN RELAY OUTPUT
27 F100 20DG/YL FUSED IGNITION SWITCH OUTPUT (RUN)
28 F200 20PK/LB FUSED IGNITION SWITCH OUTPUT (RUN-START)
29 - -
30 F937 18PK/YL FUSED IGNITION SWITCH OUTPUT (RUN)
31 F936 20PK/YL FUSED IGNITION SWITCH OUTPUT (RUN) (DIESEL)
32 F342 14BR/DG FUSED MAIN RELAY OUTPUT
33 INTERNAL FUSED B(+)
34 A922 14RD/BK FUSED B(+) (VALVE)
35 A921 12RD/DB FUSED B(+) (PUMP)
36 A937 14OR/RD FUSED B(+) (SRT4)
37 - -
