Circuit Schematic

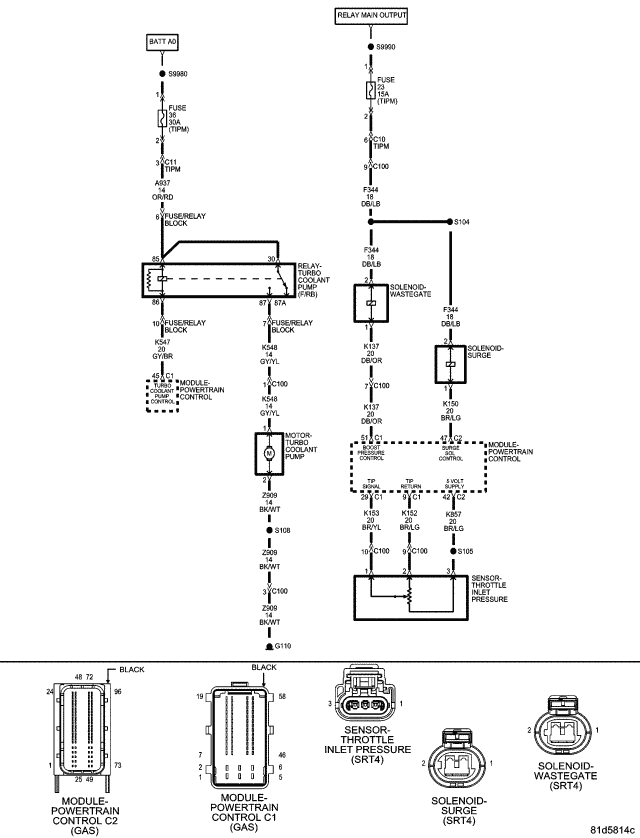

Fig 1: Turbocharger Surge Valve Control Circuit Schematic

GC0071225

Courtesy of CHRYSLER LLC
