9013-Driver Seat Belt Switch Circuit Open: Notes

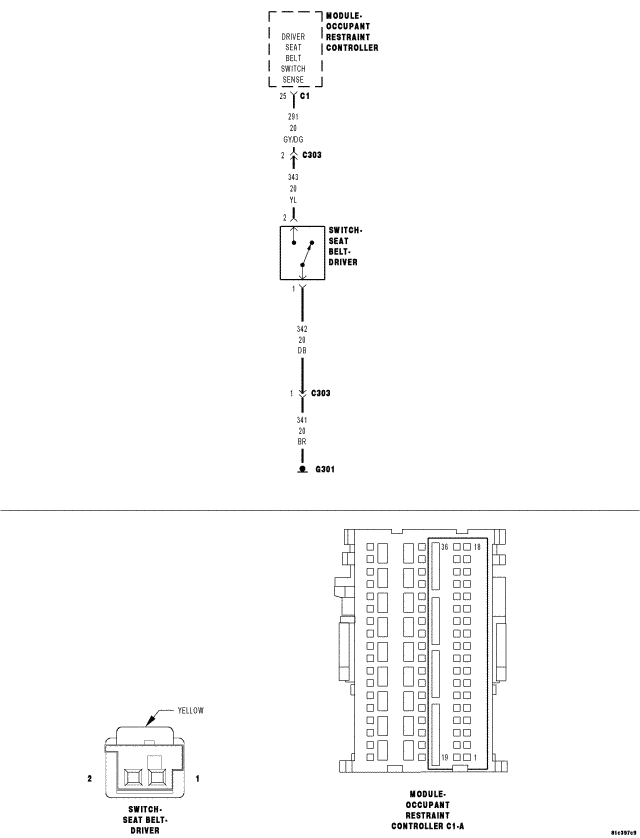

Fig 1: Driver Seat Belt Switch Circuit Schematic

Courtesy of CHRYSLER LLC

For complete wiring diagrams refer to SYSTEM WIRING DIAGRAMS article.

1. When Monitored:

   While the ignition on and the Occupant Classification Module (ORC) configured for a Driver Seat Belt Switch, the Occupant Restraint Controller (ORC) module checks the switch input current ranges.

2. Set Condition:

   The DTC will be set active if the ORC detects an open or high resistance on the passenger seat belt switch circuits.

Always perform the *RESTRAINT SYSTEM PRE-DIAGNOSTIC PROCEDURE
