Home >> Dodge and Ram >> 2007 >> Nitro SLT, AWD >> Repair and Diagnosis >> Engine Performance >> System >> DTCS P063A To P1404 >> P1004-Short Runner Valve Control Performance >> Circuit Schematic

Circuit Schematic

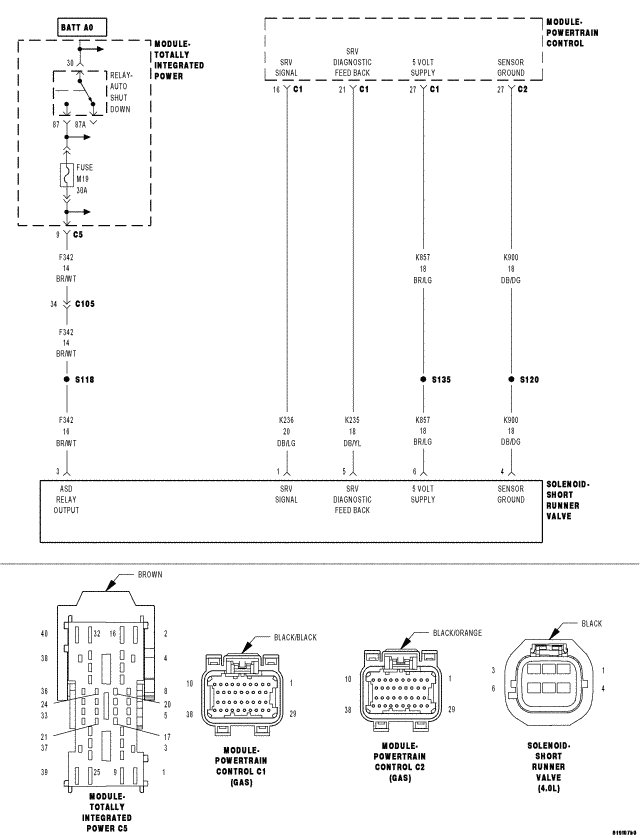

Fig 1: Short Runner Valve Control Circuit Schematic

GC0062189

Courtesy of CHRYSLER LLC
