Home >> Dodge and Ram >> 2007 >> Nitro SLT, AWD >> Repair and Diagnosis >> Engine Performance >> System >> DTCS P063A To P1404 >> P0685-Auto Shutdown Control Circuit >> Circuit Schematic

Circuit Schematic

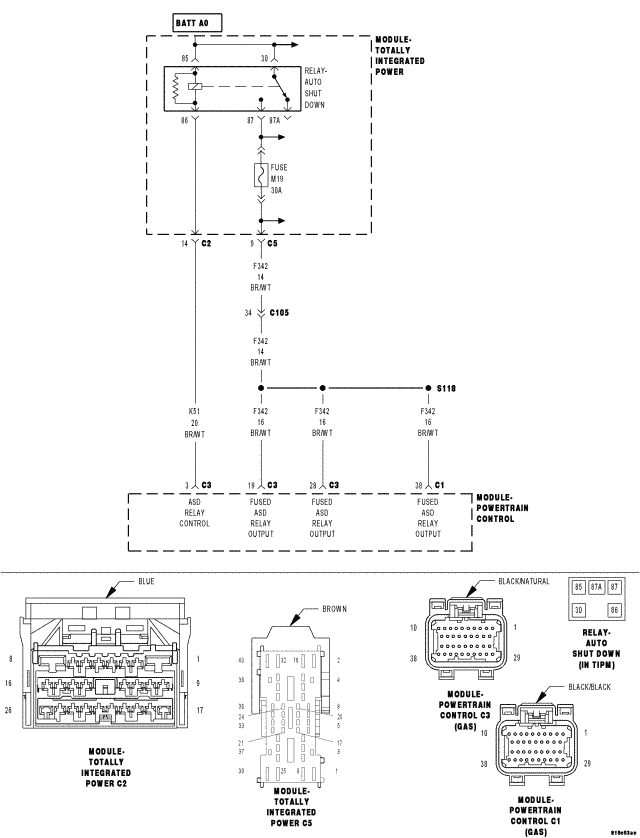

Fig 1: Auto Shutdown Control Circuit Schematic

GC0062176

Courtesy of CHRYSLER LLC
